Briquettpress

Prodeco

shredding, briquetting

Type: Nano E55
Good to know: CE marking, automatic start with level detection
Technische Daten:
  • hourly output:  15 - 55 kg/h

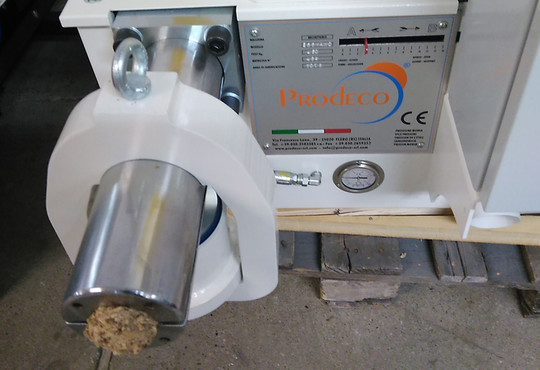

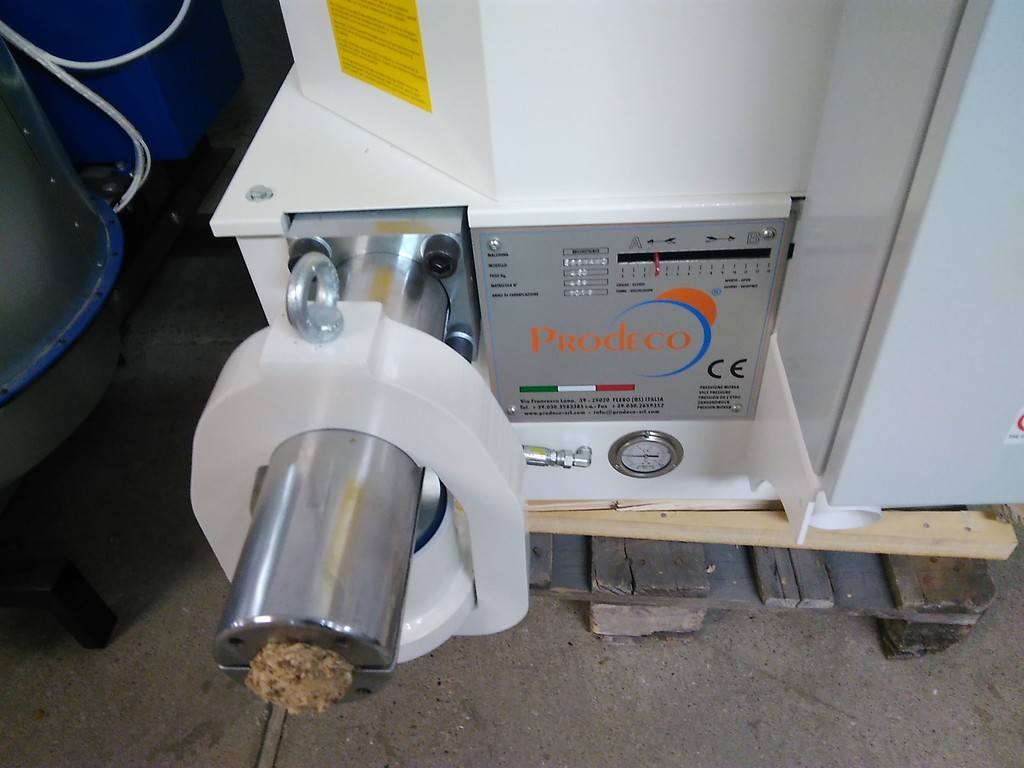

  • briquet diameter:  55 mm

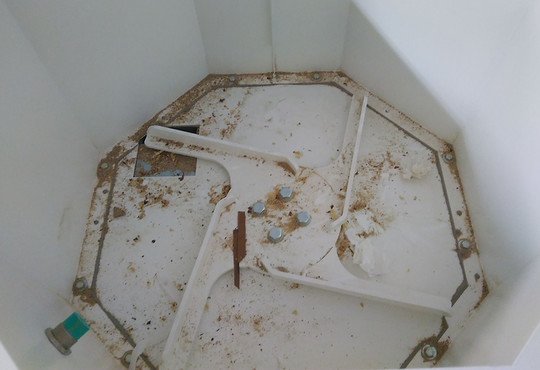

  • drum size:  octagonal, diameter 750mm
  • dimension:  1500mm x 900mm x 1065mm (L x B x H)
  • motor power:  4 kW

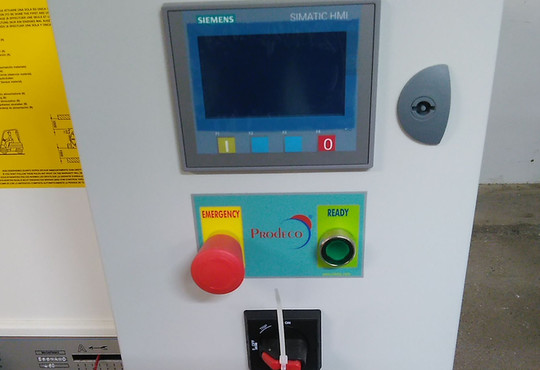

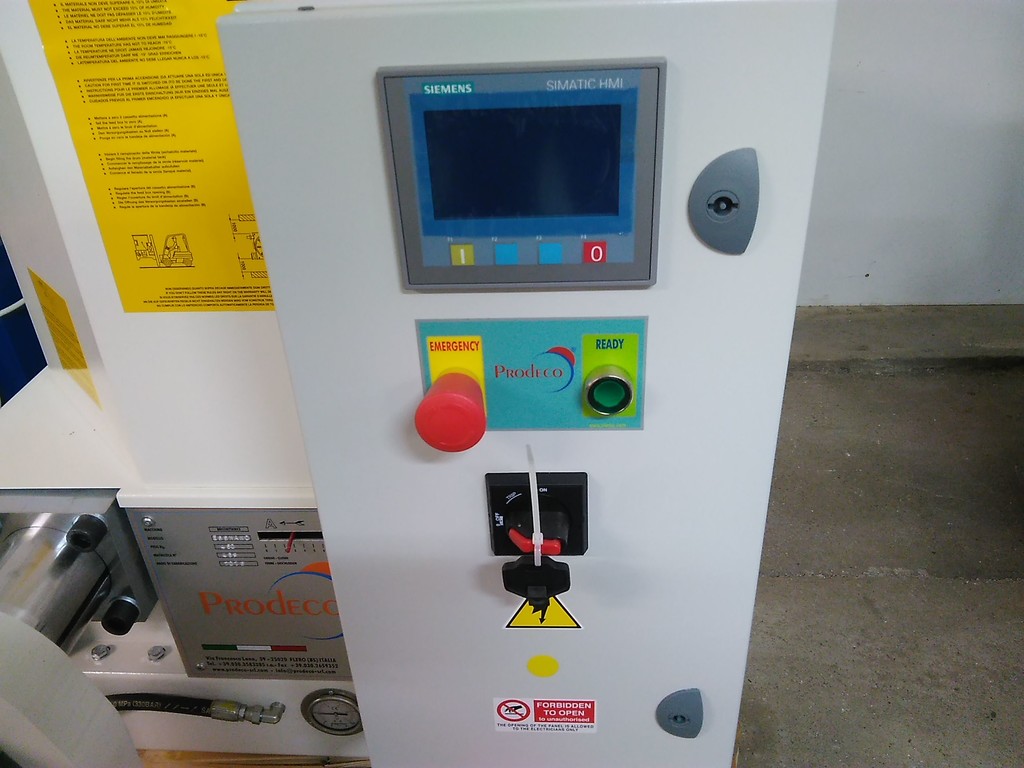

  • electronic control:  Siemens PLC
  • weight:  450 kg
  • Model year: 2023
  • Location: at our showroom

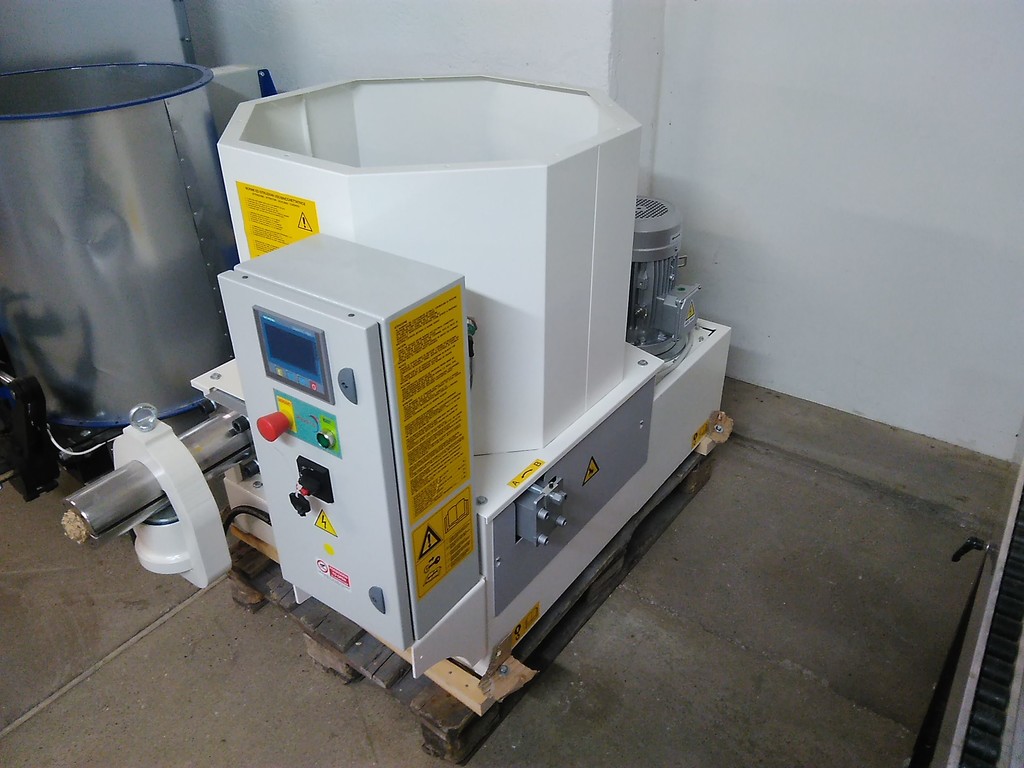

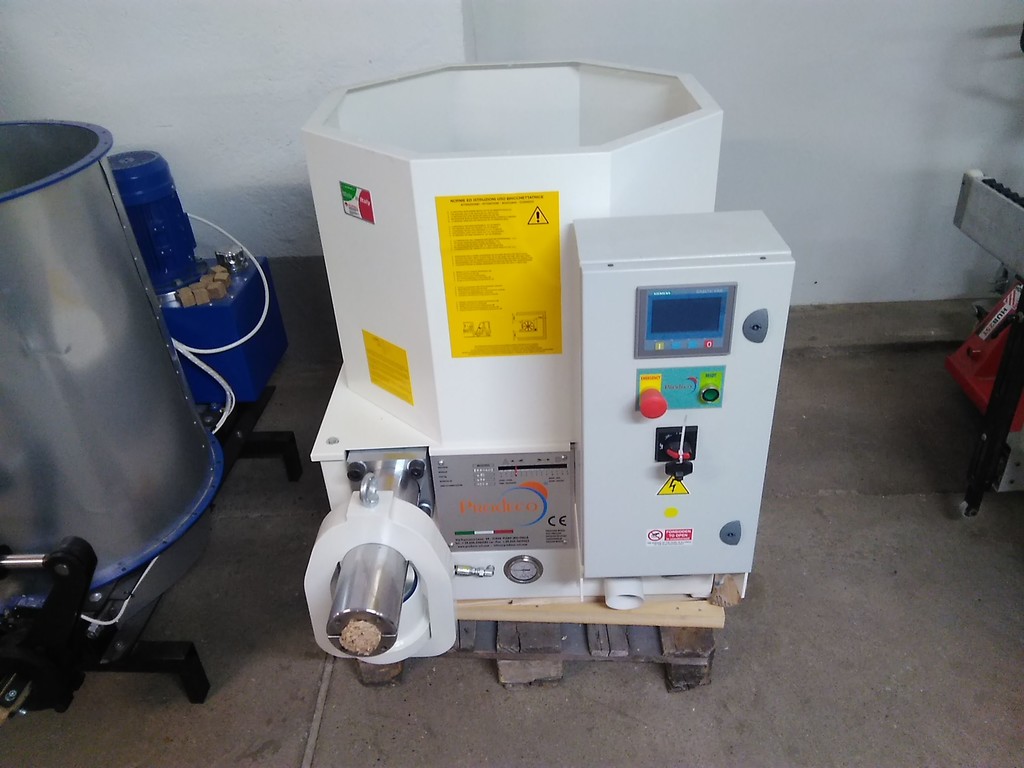

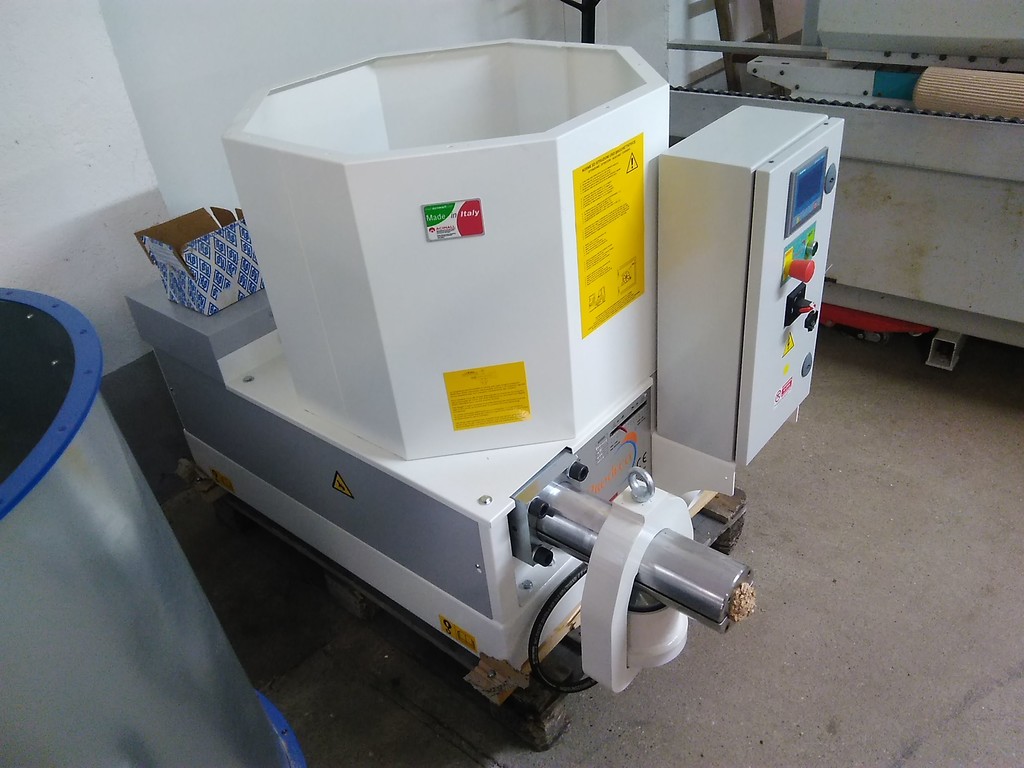

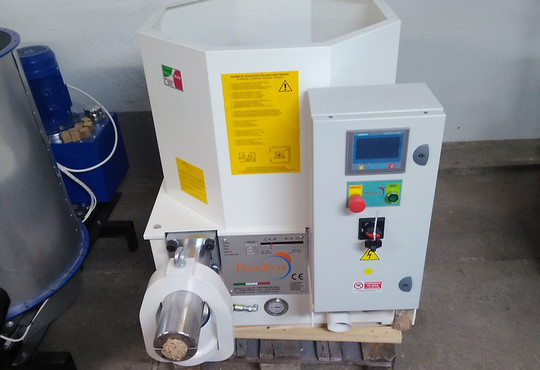

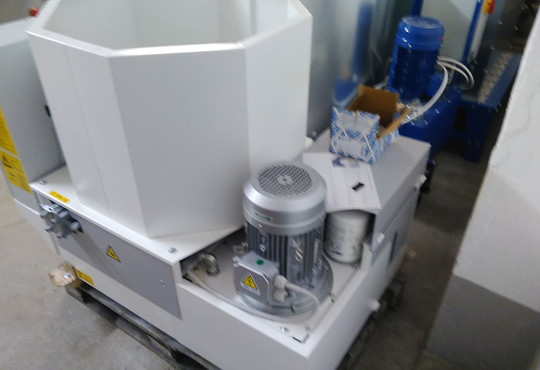

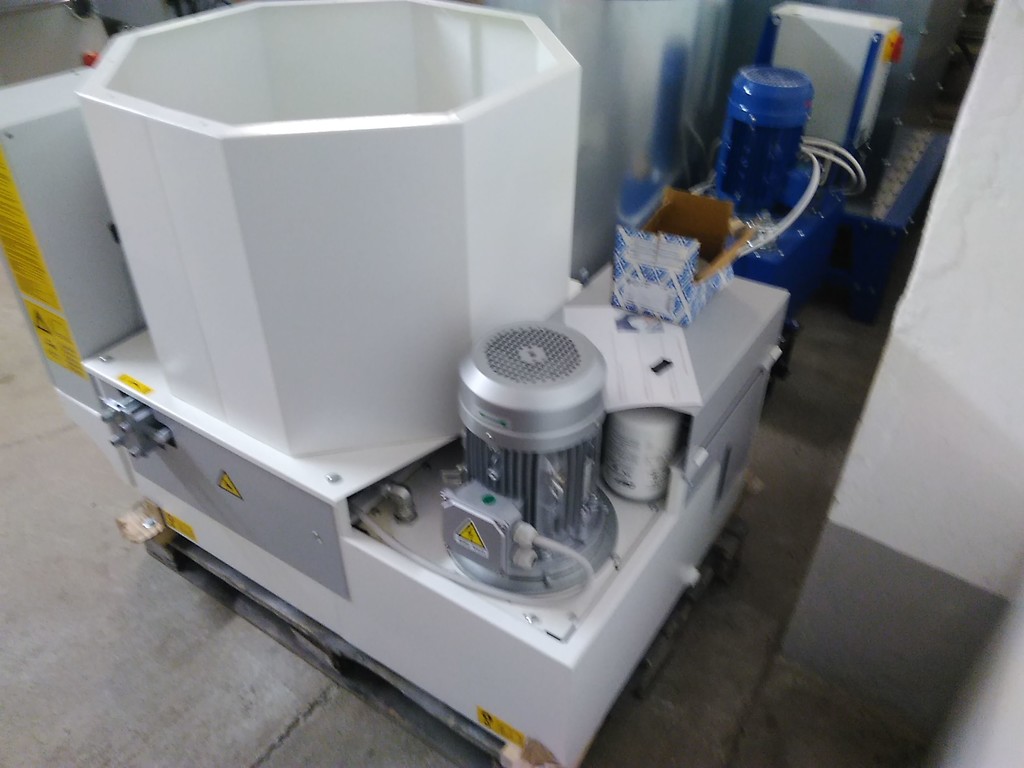

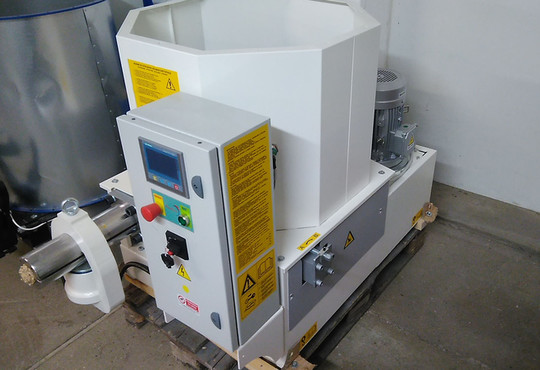

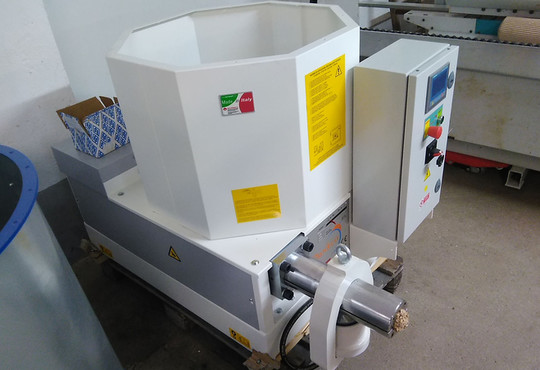

The NANO briquetting is a compact machine suitable for small
production, for any company that want change the extraction filter
line with collection of material inside bags or in trucks, without change
to the extraction.
Because of the compact and small dimensions, Nano can be
positioned under a normal modular filter in place of the trucks or the
bags for the collection of the material.
The principle of construction and function of this briquetting machine
is the same of all the standard briquetting machine of our production
but with great attention at the reduced dimensions.
The loading system of the material developed with pulling during the
principal piston work, is be changed to a direct – drive reduction unit
that can effect 1 g/min.

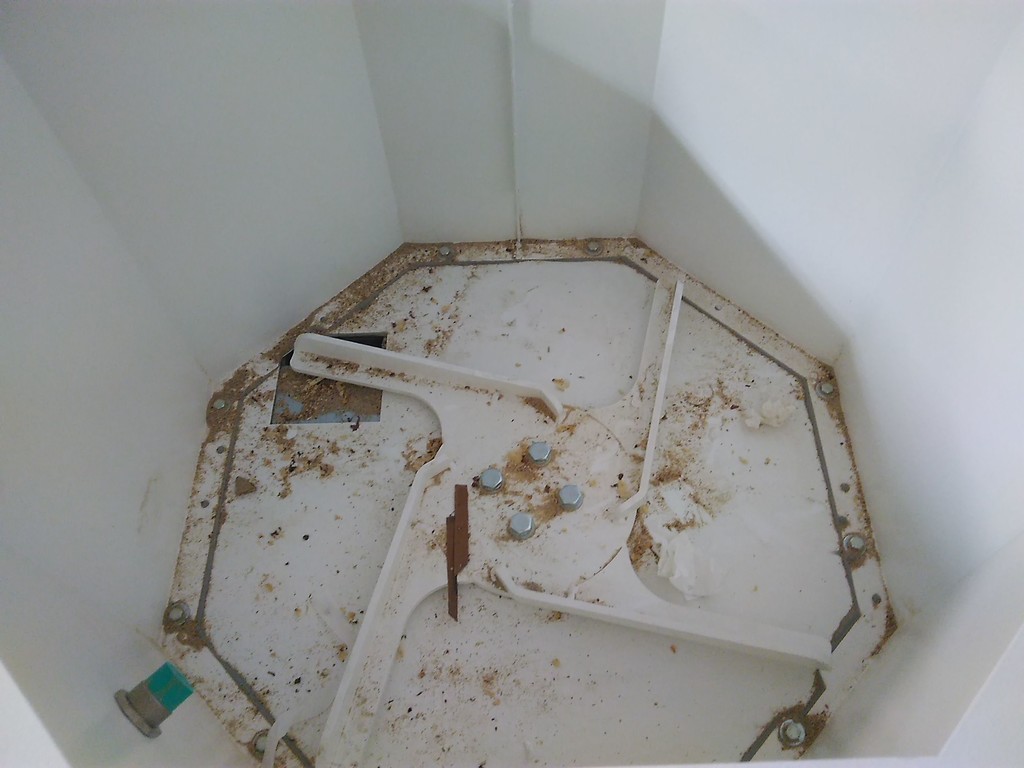

The small drum to store the material
