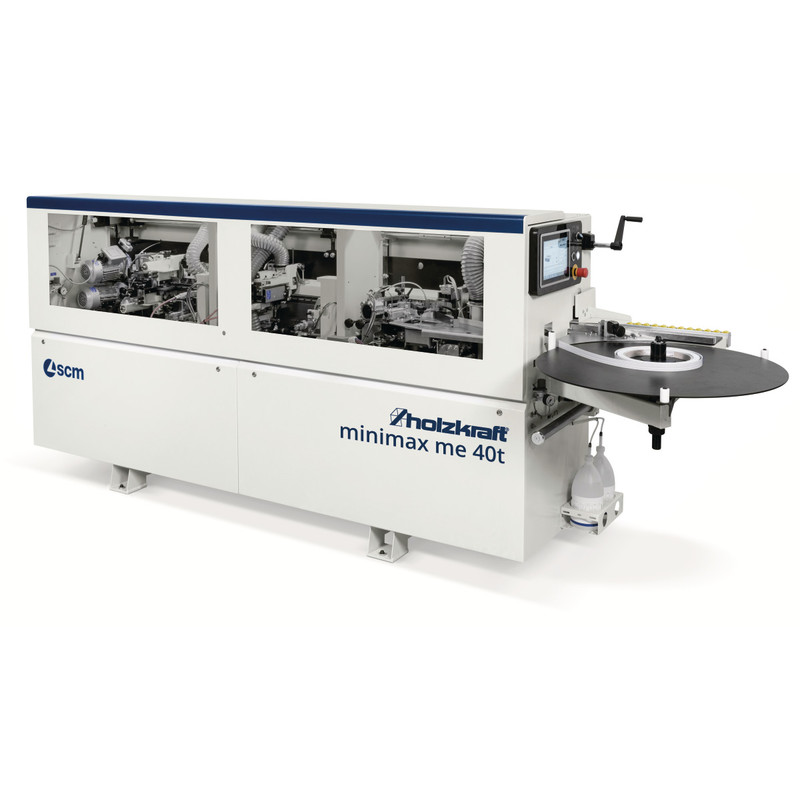

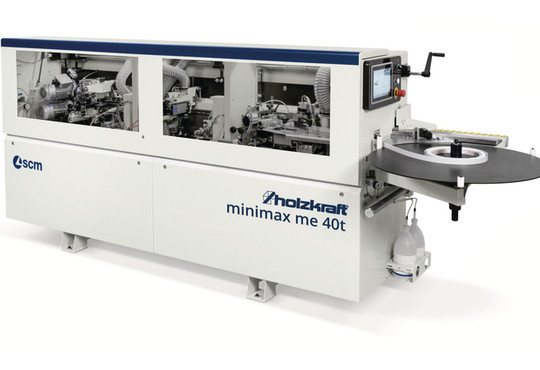

edge banding machine
Holzkraft
edge banding machines
Type:
minimax me 40 tr s
Good to know:
CE marking
Technische Daten:
- Pre-milling unit: yes
- Pre-milling unit material removal: 0 - 2 mm
- plastic edges: 0,4 - 3 mm
- solid wood edges: 0,5 - 5 mm
- Workpiece thickness: 8 - 50 mm
- Minimum length of workpiece: 120 mm
- Min. work piece width: 110 mm
- Anti-adhesive spraying unit: yes
- Edge preheating device: yes / with ceramic infrared lamp
- Bonding unit: granulat / Glue container quick-change kit
- Jack knife: yes
- Flush trimming unit: yes
- Corner copy unit: yes
- Flush radius milling unit: yes
- Radius scraper unit: yes
- Area scraper unit: yes
- Buffing unit: yes
- Cleaning spray unit: yes
- motor power: 5 kW
- machine length: 3774mm
- machine width: 1546 mm
- machine height: 1337mm
- weight: 842 kg
- Model year: 2023
- Location: Bamberg
Price:
37899,- € (net)
Top equipment for high productivity with low space requirements!
Intuitive operation with the eye-S control and 10" large touchscreen:
- HMI Maestro Active Edge
- Graphic display of all processing units and their operating status
- Graphic simulation of the machining operations
- Control of all processing units
- Regulation of the glue pool temperature
- Assistance functions for setting up the machine according to the machining program
- Fault diagnosis for quick correction of simple errors
- Statistics on machining parameters
- USB port
- Preparation for network connection
- Excellent accessibility to the working units thanks to the large hood that ensures protection and noise reduction
- Automatic aggregate positioning when changing plate thickness

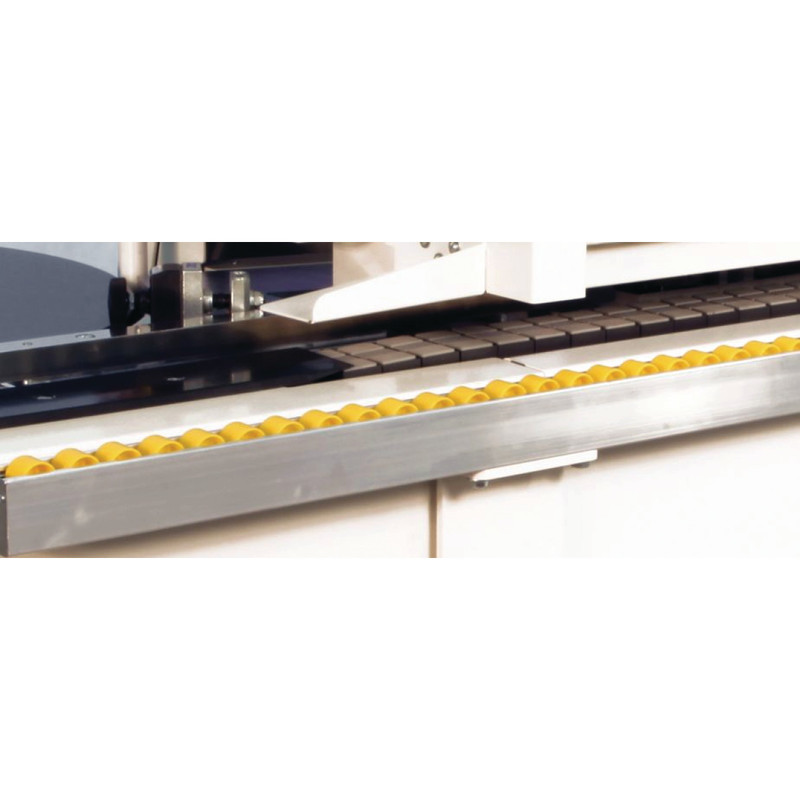

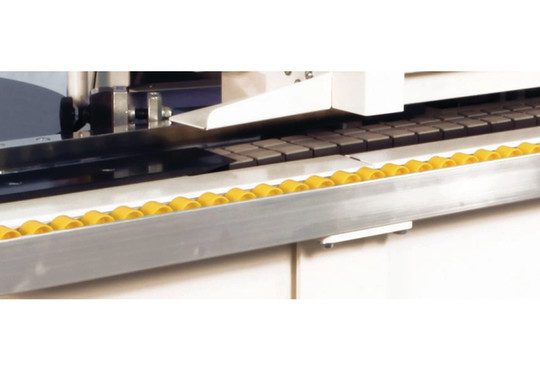

- Plate feed by conveyor with rubber sliders
- Quality Made in Italy
Equipment details

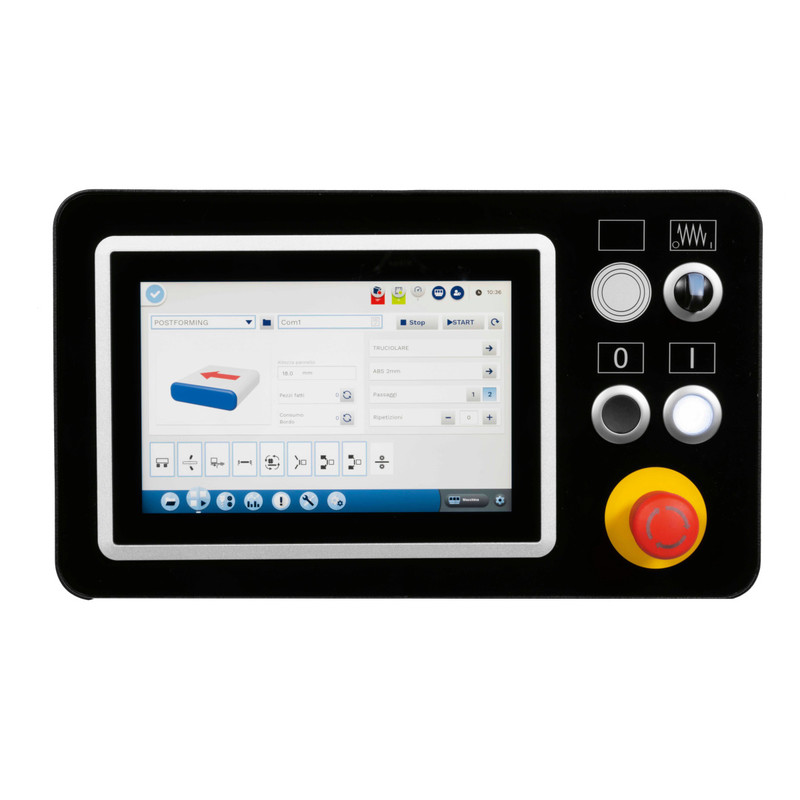

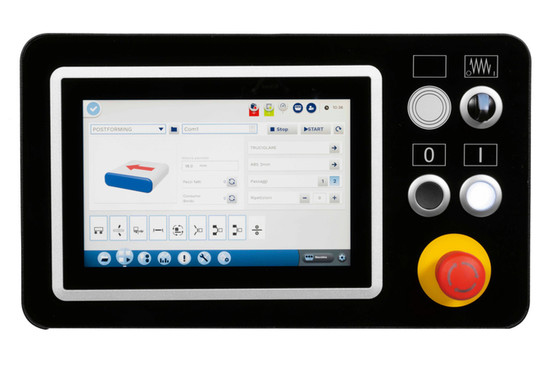

10" touchscreen control panel
- Optimal machine management due to the new 10" touchscreen control panel with Maestro active edge on which all machine functions are displayed graphically

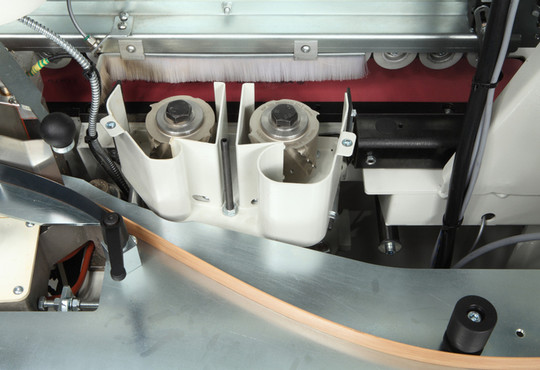

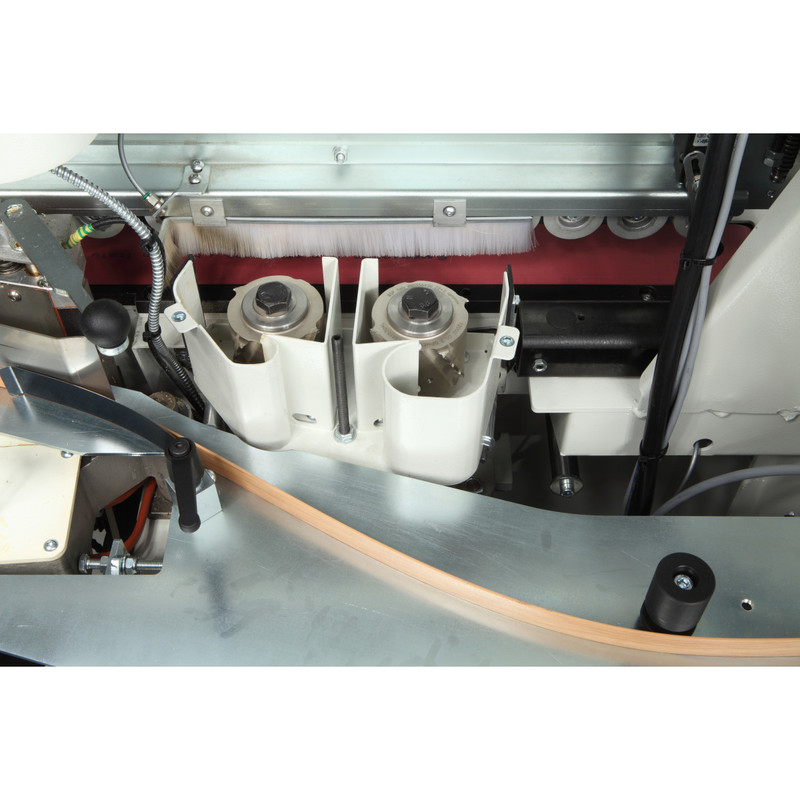

Premilling unit
- Two slide cutter

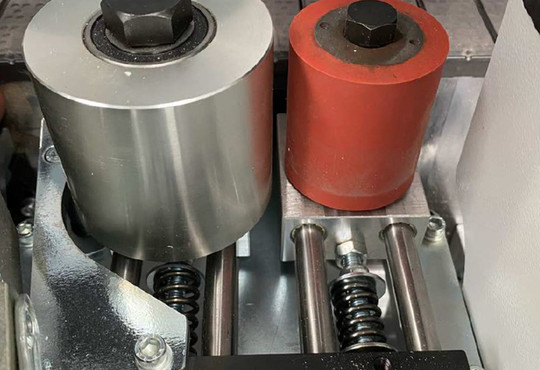

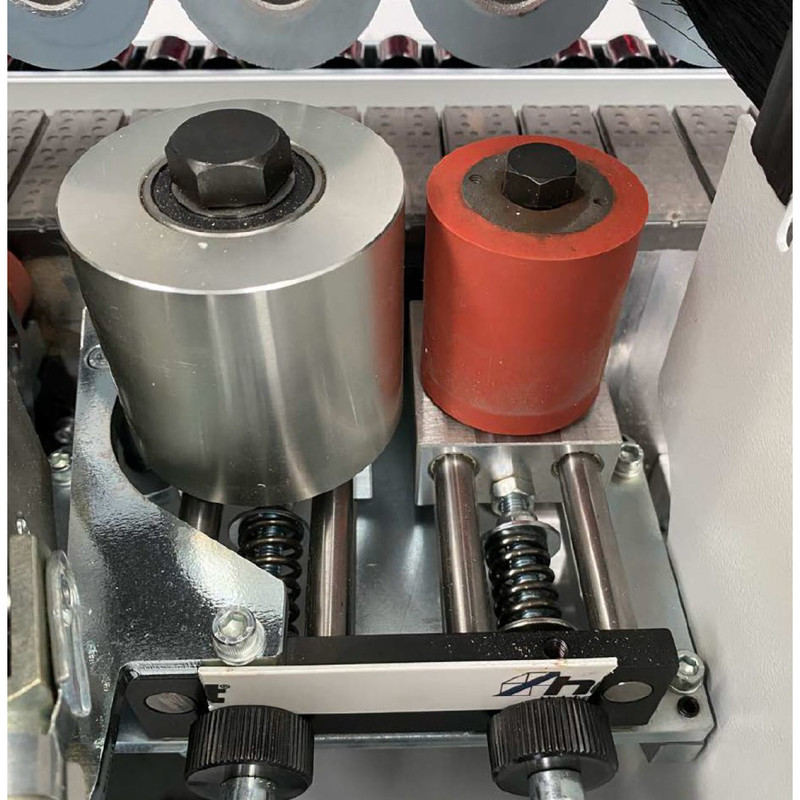

Gluing station
- The glue is heated quickly and evenly by heating rods located both in the glue pot and in the glue application roller
- Automatic temperature reduction when the machine is in idle for longer
- Teflon-coated glue container for easy glue replacement
- Device for recycling of unused glue
- Automatic application of roll edges with cutting knife for edges up to 3 mm
- Turntable with Ø 730 mm
- Self-lubrication of the glue pot
- Kit for quick change of the glue container

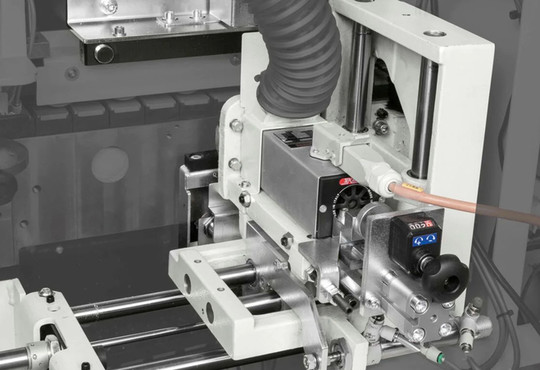

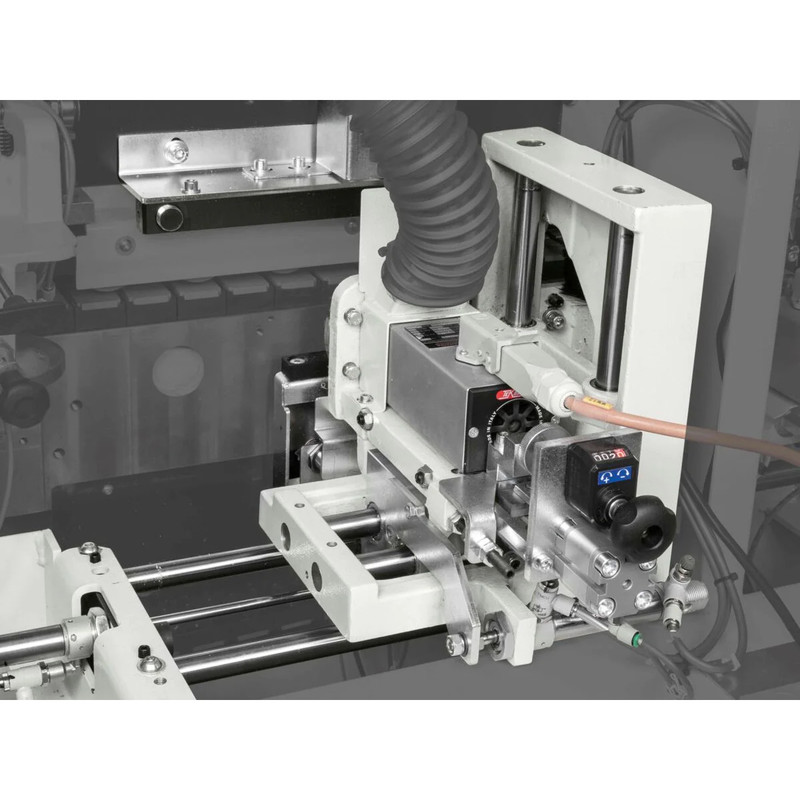

Flush radius trimming unit
- With sensing rollers in horizontal and vertical direction for optimal tool positioning
- Equipped with combination milling tool Ø 55.3 mm for flush milling of edges up to 5 mm and radius edges up to 2 mm
- Precise setting via 2 digital displays
- With chip exhaust
Surface scraper
- Absolute cleanness for the perfect finish of workpiece surface
- With rotating copy device

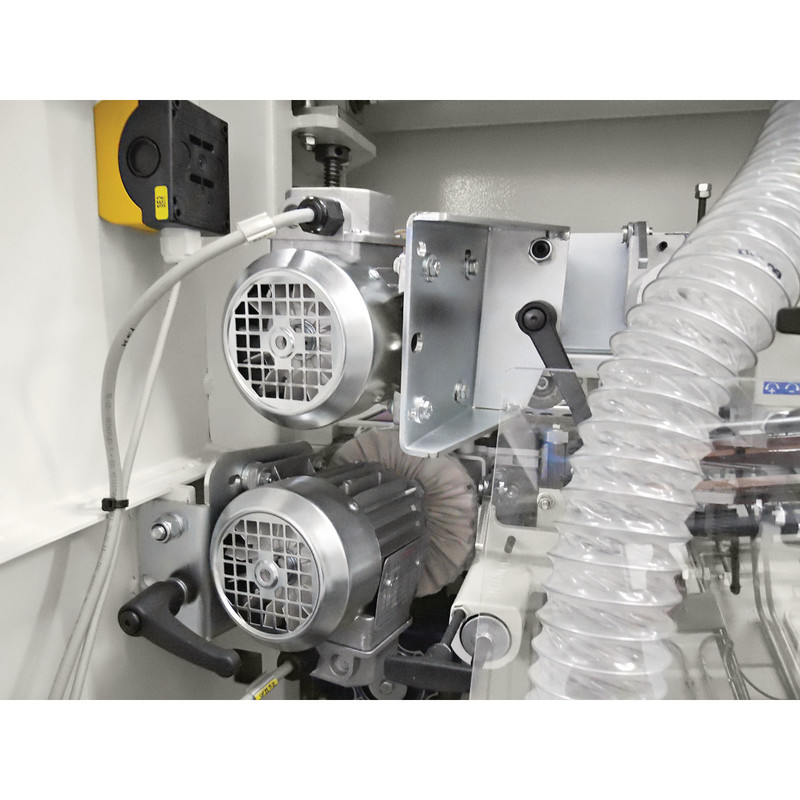

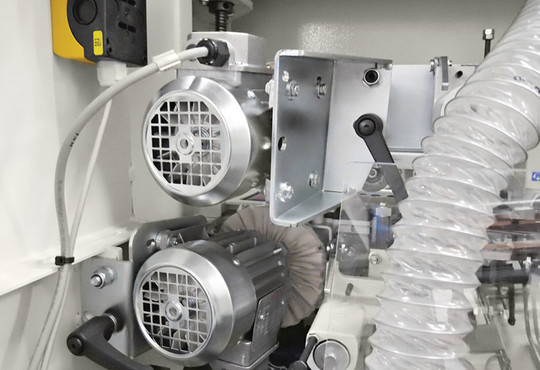

Buffing unit
- Drive via two independent swivel and height-adjustable motors
- For perfect cleaning and polishing of the panel edges

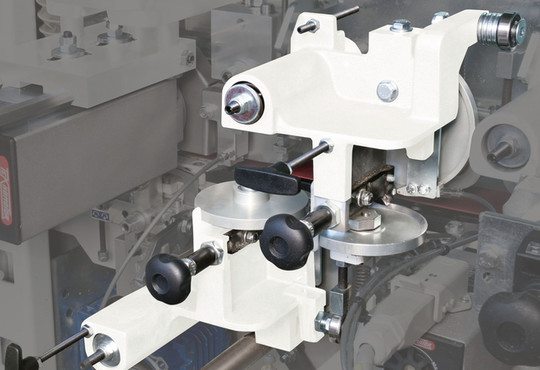

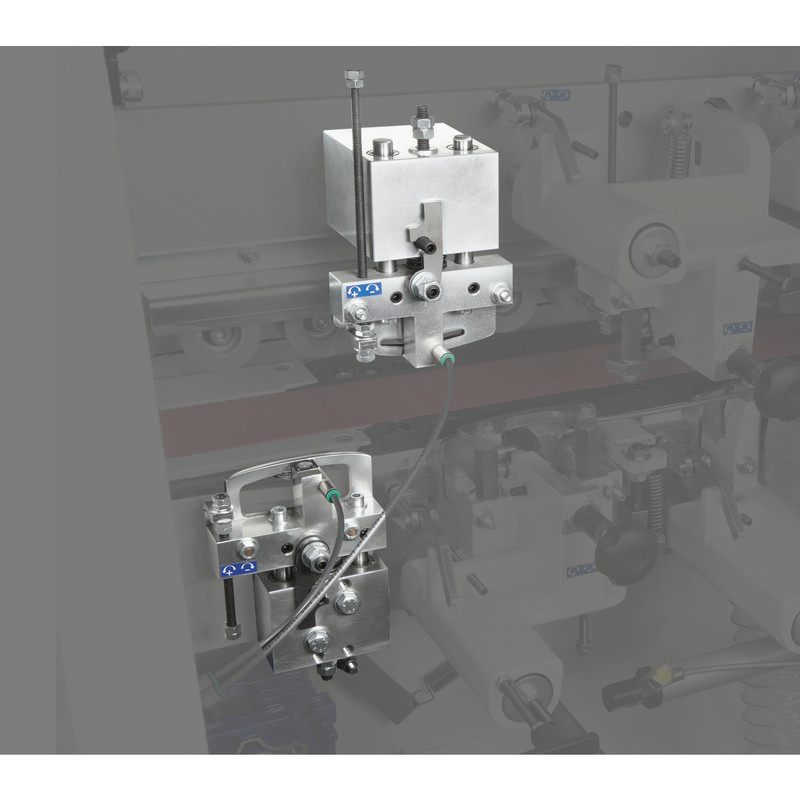

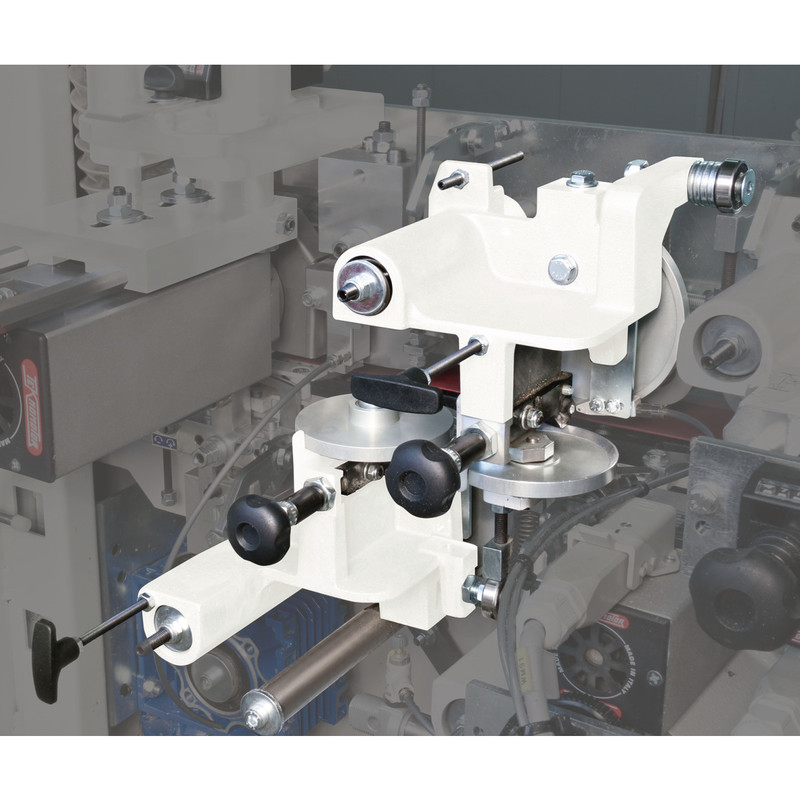

Radius scraper
- With numerical position display
- For the perfect finishing of plastic edges
- With device for retracting the unit when it is not needed

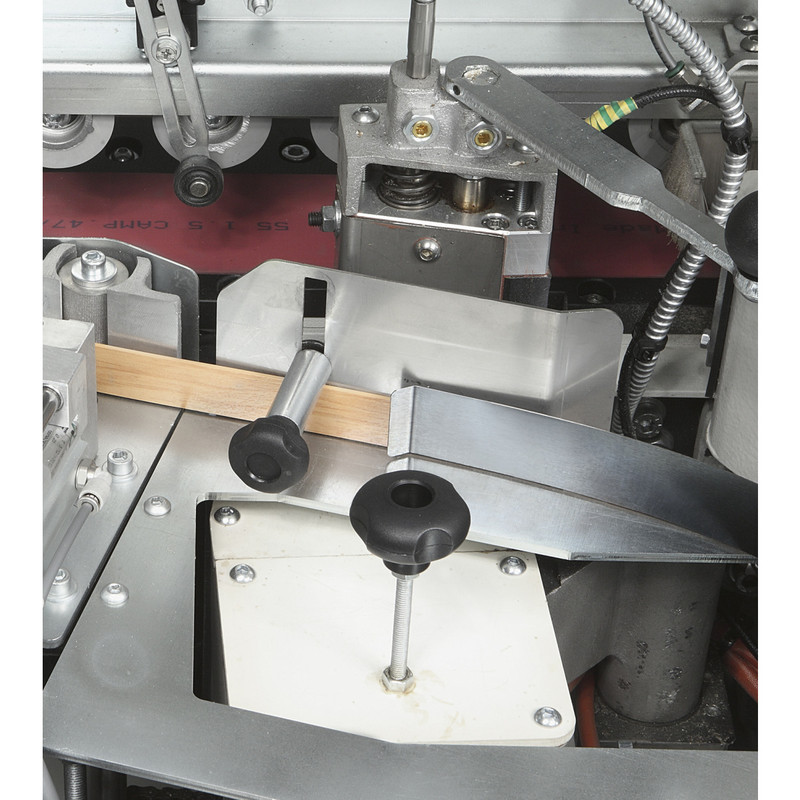

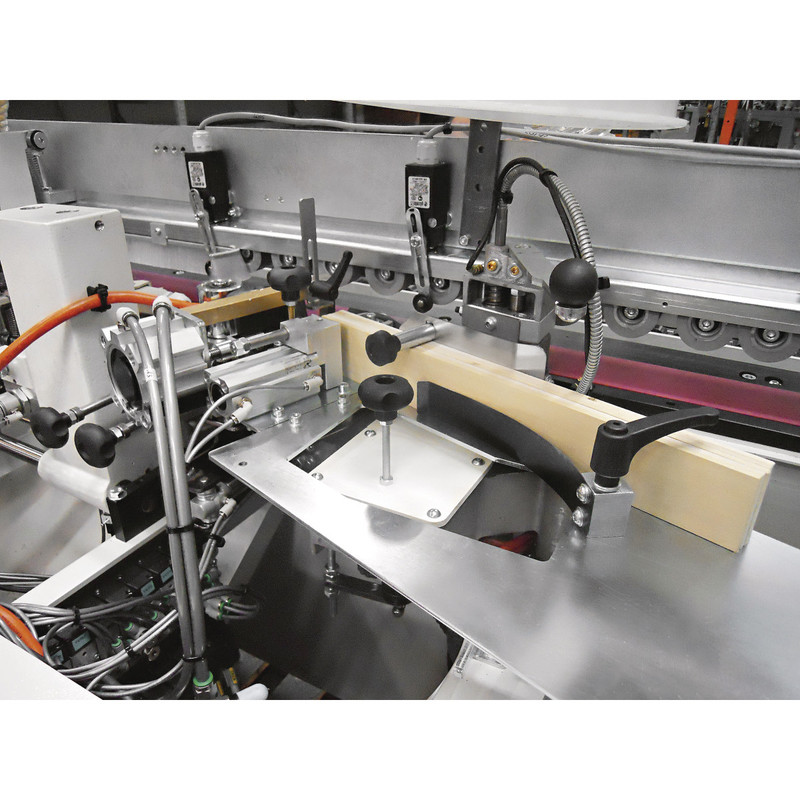

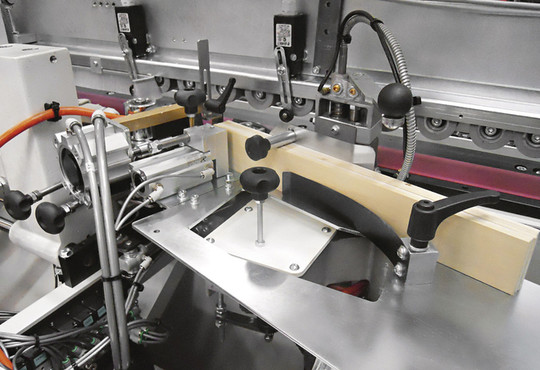

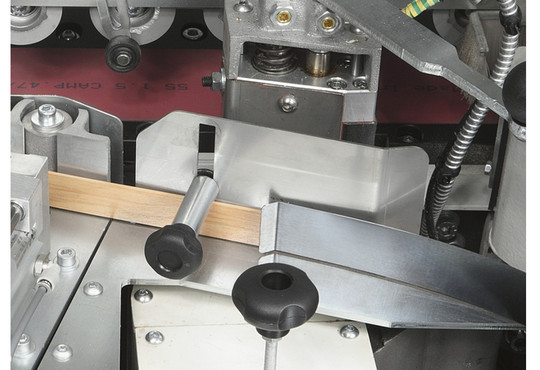

Edge magazine
- For automatic application of strip edges
- Solid wood strip edges are automatically loaded and synchronized with the panel guide
Available as an option: Grooving unit
- Allows gluing and grooving of the workpiece in one pass
- Installation only possible as an alternative to buffing unit 5514560
Milling unit (me 40 tr s)
- For capping the edge, as well as for radius milling on the top and bottom side
- The radius cutter is used to trim the edges when solid wood edges are glued
- High frequency motor with 12.000 rpm; saw blade Ø 125 mm Z12
Sprayer for finishing the edge
- For pre-cleaning of the panel surface and edge for more effective cleaning

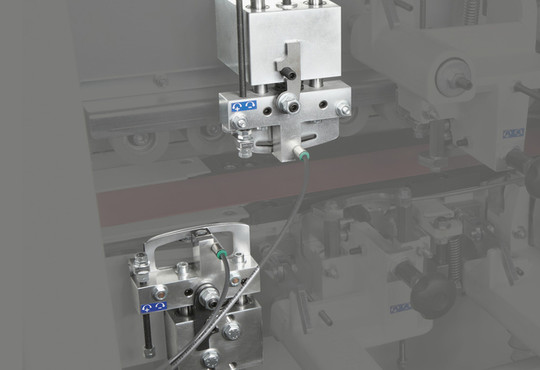

Cross-cut unit (me 40 tr s)
- For capping protruding edges

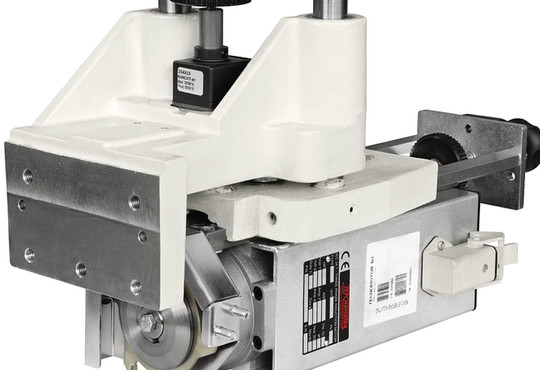

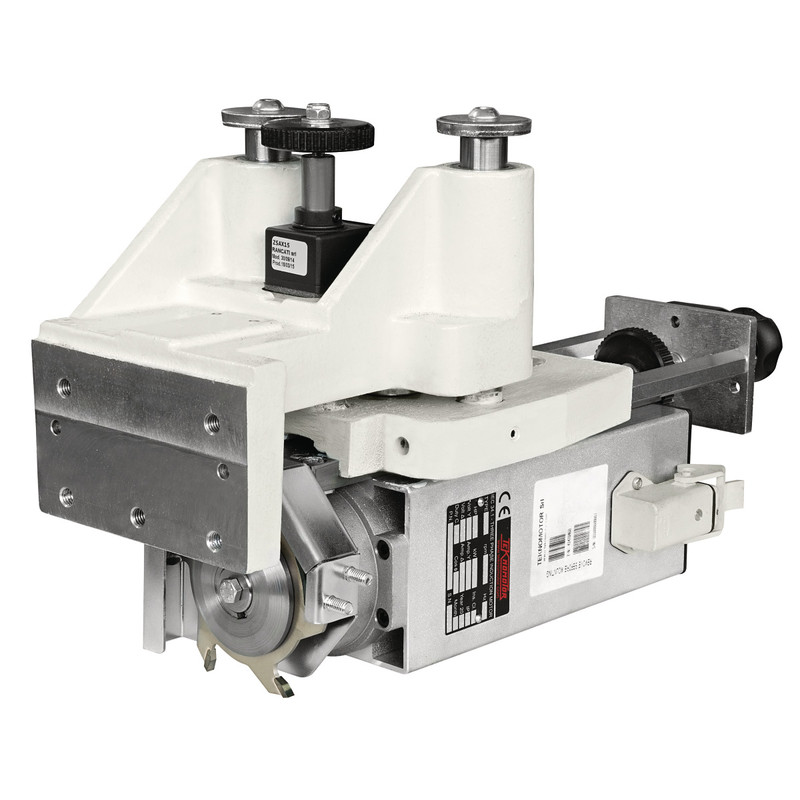

Rounding unit (me 40 tr s)
- For rounding the edges
- High frequency motor with 12,000 rpm; cutter Ø 58 mm Z4
