hot air generator, workshop heater, hall heater

Fabbri

Heating

Type: F55 c.v.
Good to know: CE Marking, hot air fan, smoke fan
Technische Daten:
  • flue capacity:  49kW
  • conventional yeld capacity:  45kW
  • flue diameter:  180mm
  • hot air delivery pipes:  2 x 200mm
  • flue length:  6600mm
  • oven width:  480mm
  • oven hight:  600mm
  • air flow:  3500m³/h
  • Suction filter :  optionally available
  • power consumption:  550W
  • aproximate surface to heat up:  1000m³
  • area to be heated:  200/250 m²
  • heater height without air conveying pipes:  1750 mm
  • heater width:  700
  • heater hength:  1150
  • weight:  305 kg
  • Model year: 2024
  • Location: not at stock

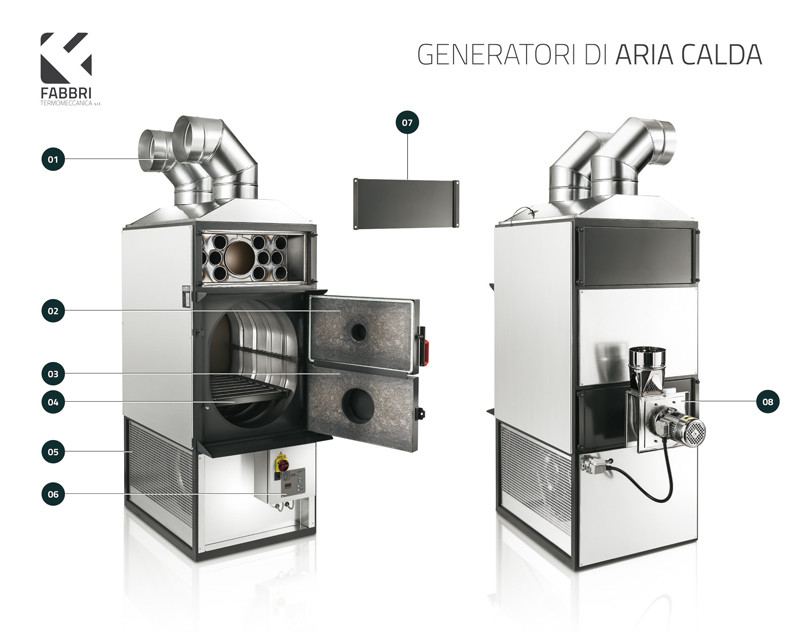

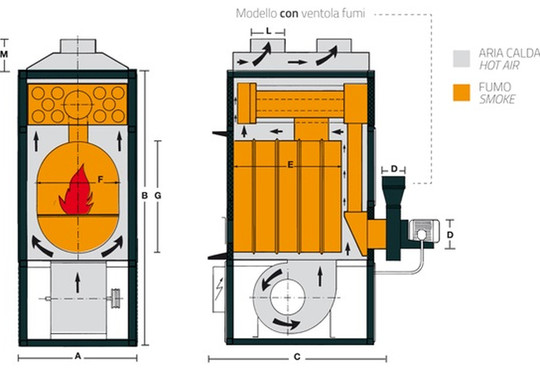

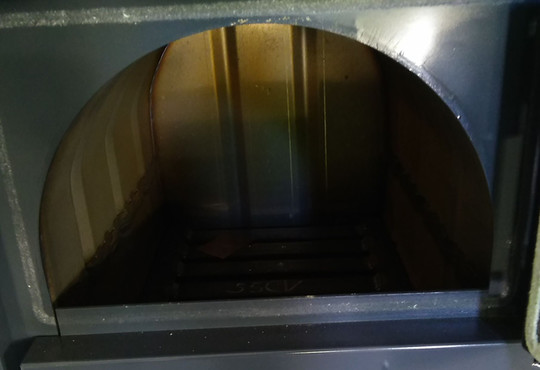

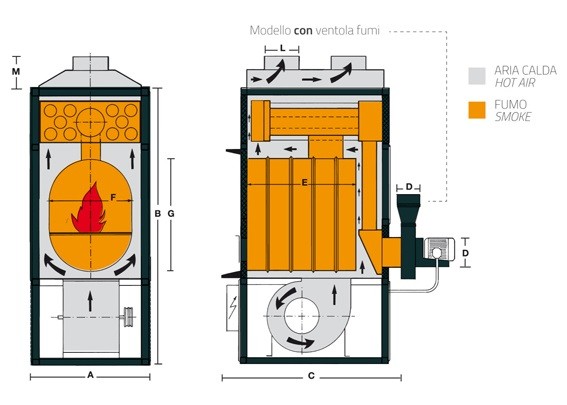

Horizontal oven made of thermal chrome plated stainless steel, reinforced with ribs.
Exchangers 2 or 3 smoke revs.
Inner side made of bright sheet metal for casing and insulation.
Outer side made of zinc plated sheet metal.
Frame made of painted profile.

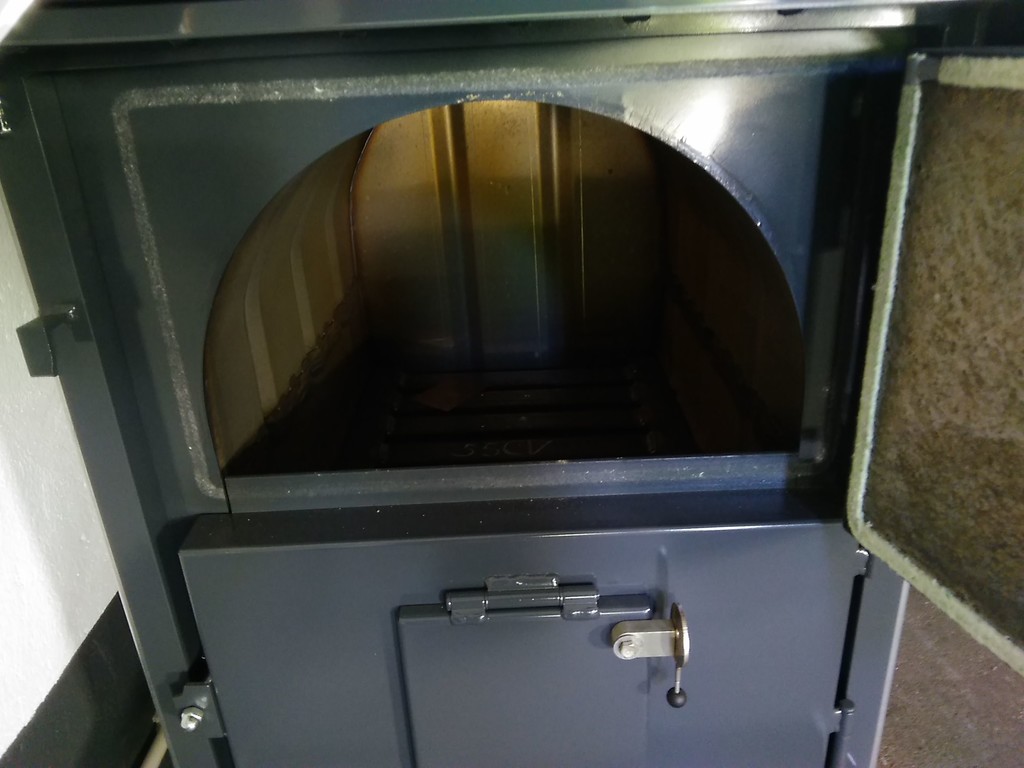

Feeding doors with refractory and extractable grates.
Panels with refractory for pipes cleaning.
Double suction centrifugal fans for hot air delivery running at low regime of turns and arranged on special elastic suspensions driven by one or more electric motors.
Smoke extraction fan (except mod. F 28-F 55 sv - F 85 sv).

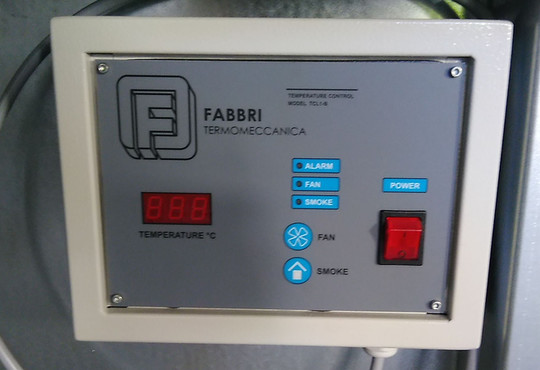

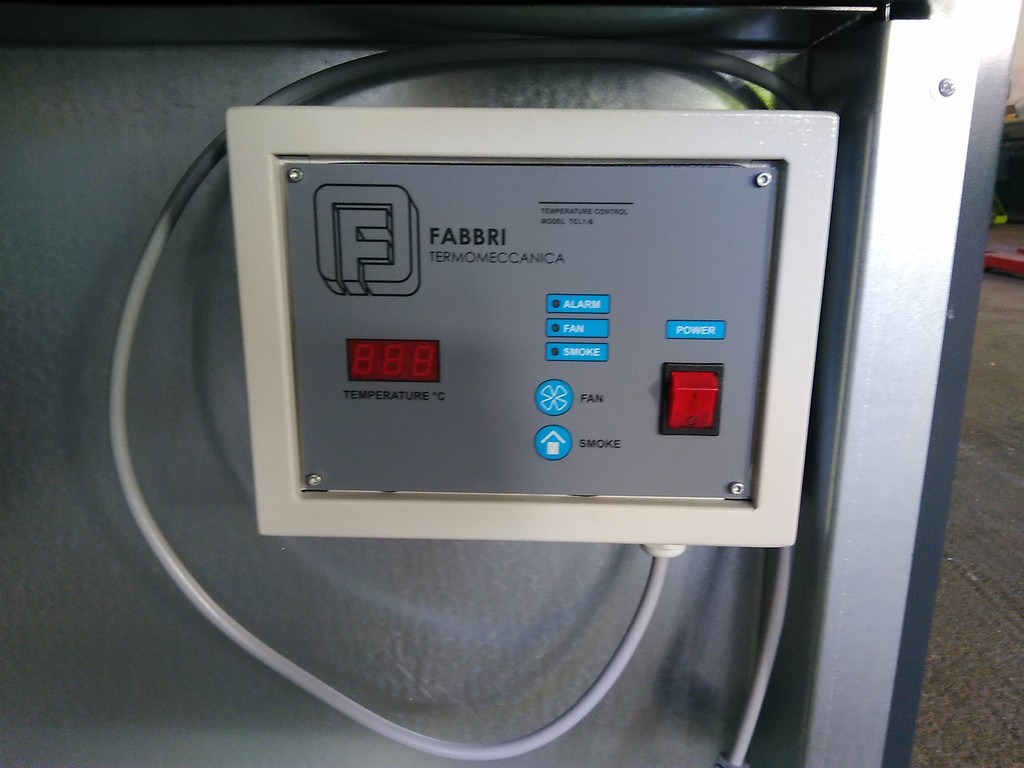

Electric command and control panel - adjusting thermostat. marking
