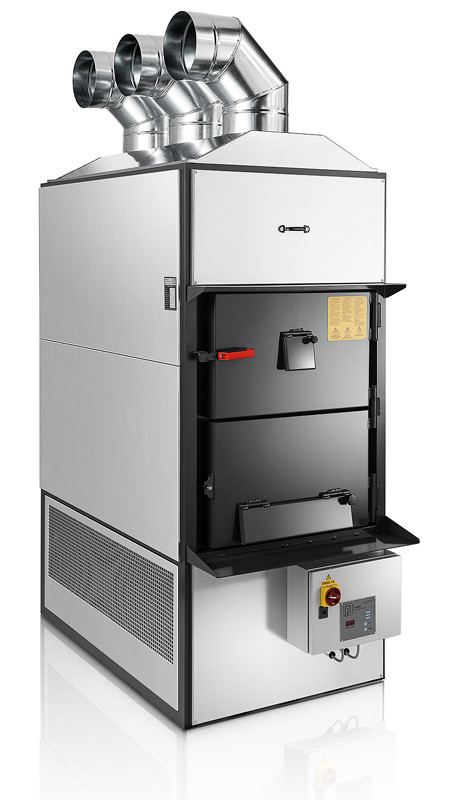

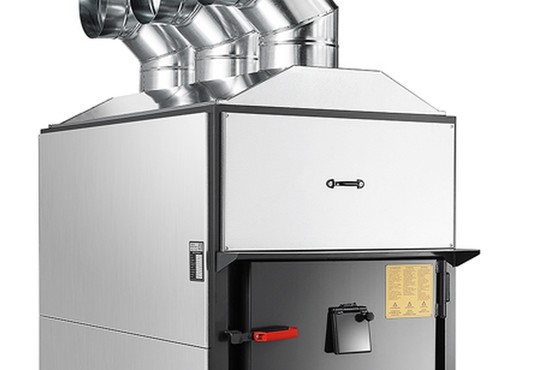

hot air generator, workshop heater, hall heater



Type: F240
Good to know: CE Marking, hot air fan, smoke fan
Technische Daten:
  • flue capacity:  350 kW
  • Conventional yeld capacity:  279 kW
  • flue diameter:  200 mm
  • hot air delivery pipes:  3 x 300 mm
  • flue length:  1200 mm
  • oven width:  740 mm
  • oven hight:  1040 mm
  • air flow:  17800 m³/h
  • power consumption hot air fan:  3 kW
  • power consumption flue gas exhaust:  600 W
  • aproximate surface to heat up:  5000 m³
  • area to be heated:  1000 m²
  • heater height without hot air conveying pipes:  2500 mm
  • heater width:  1100 mm
  • heater length:  1900 mm
  • weight:  850 kg
  • Model year: 2024
  • Location: in our showroom

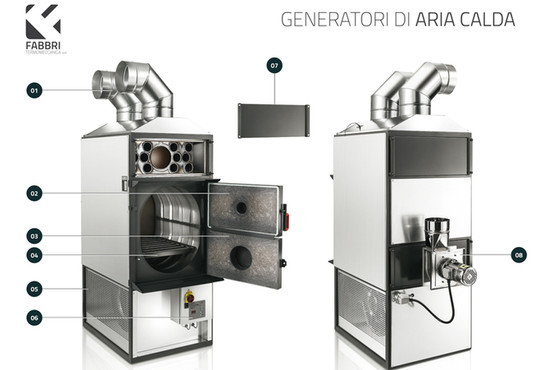

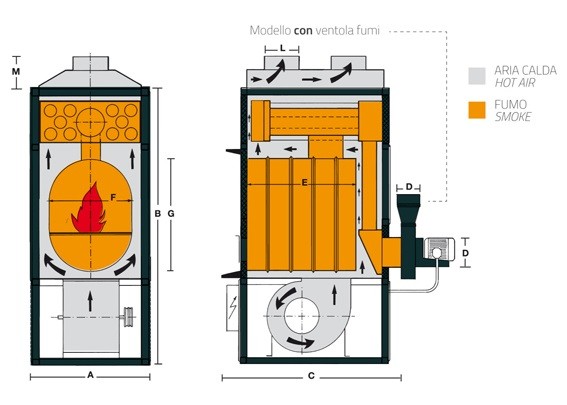

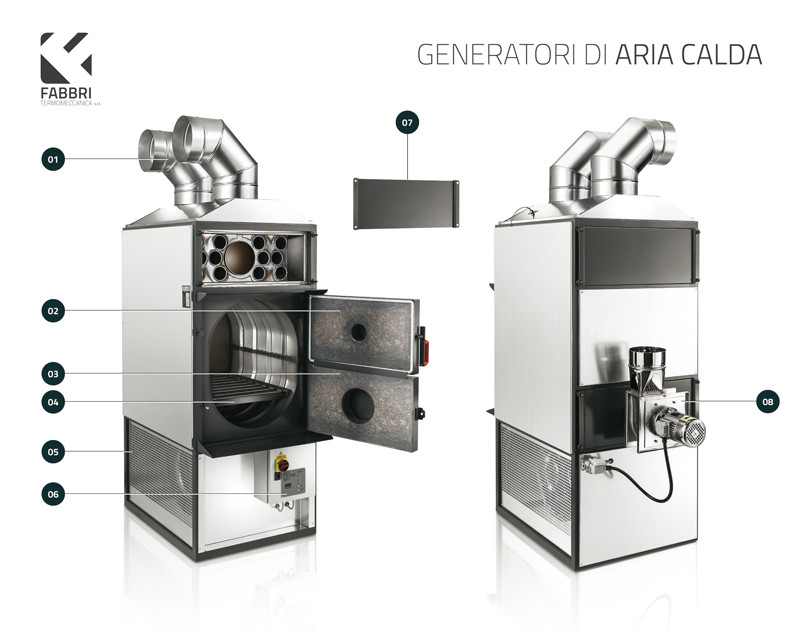

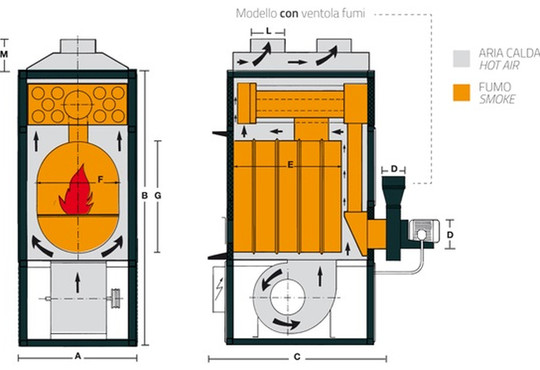

Horizontal oven made of thermal chrome plated stainless steel, reinforced with ribs.
Exchangers 2 or 3 smoke revs.
Inner side made of bright sheet metal for casing and insulation.
Outer side made of zinc plated sheet metal.
Frame made of painted profile.
Feeding doors with refractory and extractable grates.
Panels with refractory for pipes cleaning.
Double suction centrifugal fans for hot air delivery running at low regime of turns and arranged on special elastic suspensions driven by one or more electric motors.
Smoke extraction fan (except mod. F 28-F 55 sv - F 85 sv).

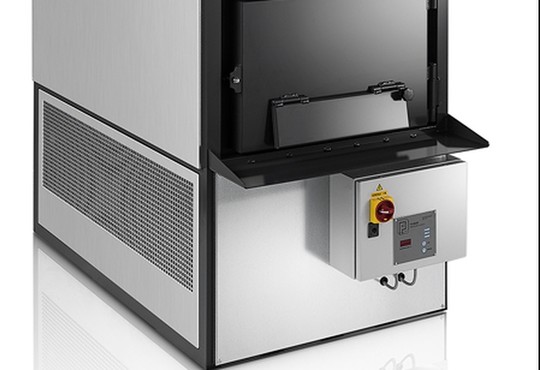

Electric command and control panel - adjusting thermostat. marking
