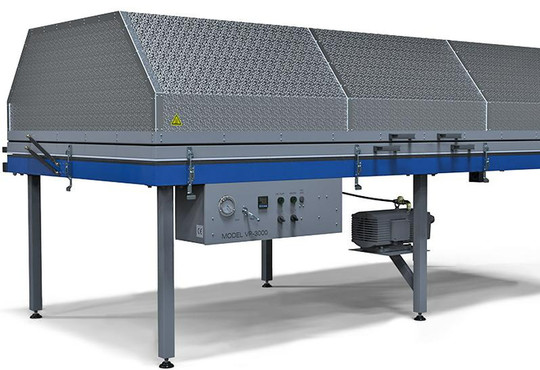

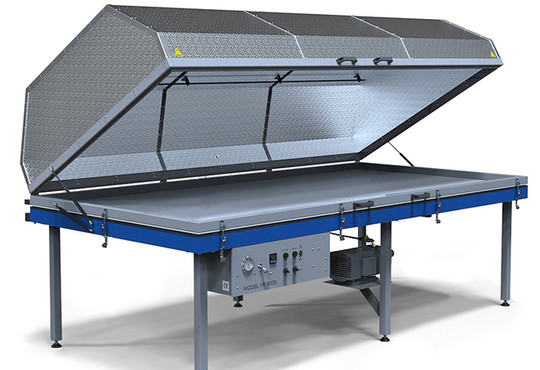

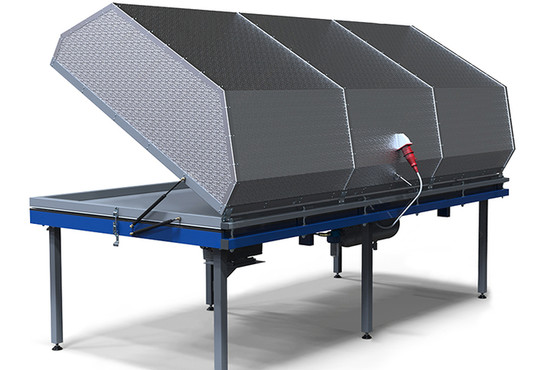

membrane vacuum press

Istra

Gluing Presses

Type: VP-3000
Good to know: CE-marking
Technische Daten:
  • working table size:  3000 mm x 1300 mm
  • emergency stop switch:  no
  • operational vacuum:  -0,85 bar
  • vacuum pump output:  25 m³/h
  • pump capacity:  0,75 kW
  • noise level:  70 Db
  • heating system temperature:  max. 60 °C
  • heating system:  4,5 kW
  • machine length:  3100 mm
  • machine width:  1450 mm
  • machine height:  1650 mm
  • weight:  450 kg
  • Model year: 2022
  • Location: at our showroom
The membrane presses of VP series are optimal solution for woodworking and a furniture production from all types of wood.
The vacuum presses are equipped with heating system which allows reduce the time of drying glue and increase productivity of production. The heating temperature monitored and maintained automatically.
The membrane presses of VP series can be used for small capacities but also for professional using.

Construction
The sturdy welded construction with a removable feet’s.

Work table from 12mm HPL board.

Heating
Heating system with system of temperature control. The heating temperature can be set on the controller and is monitored and automatically maintained by the sensor. The maximum heating temperature is 60 degrees.

Membrane
Natural rubber membrane with a very high elasticity 700%, thickness 2,5mm.

Vacuum system
Becker oil free vacuum pump with capacity 25m3/h. Pump doesn’t require special maintenance and provides a pressure of -0.9 bar (9000) kg/m2. System of vacuum control and automatic pump stop. Pressure tank 15l.

Control unit
Control panel provides an easy and convenient press function control. Two position vacuum valve. Vacuum meter. Vacuum level relay. Turn On switch.
