sourface planer
Casadei
surface planing machines
Type:

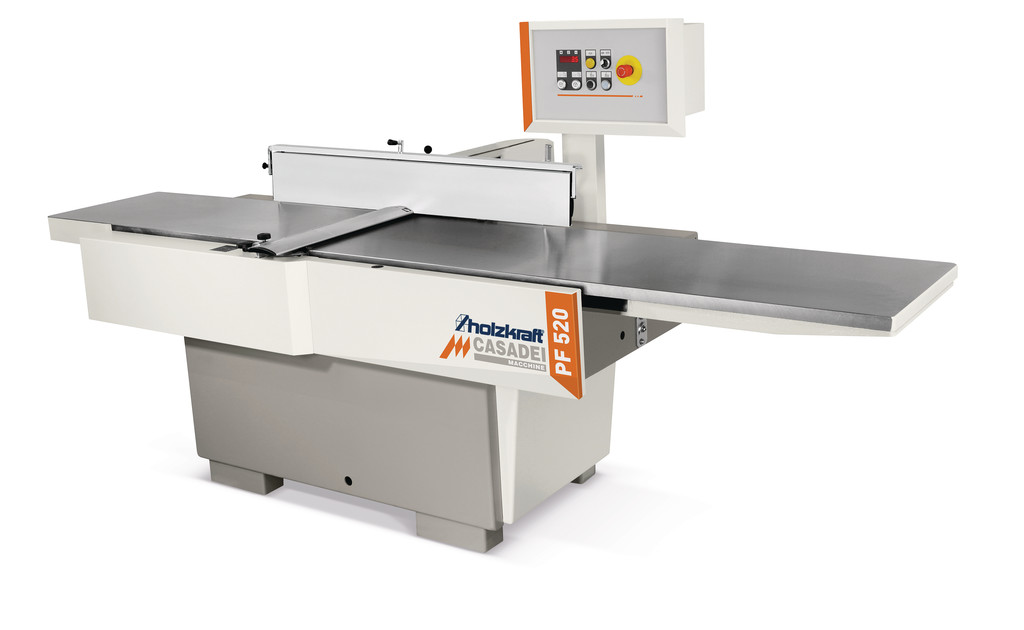

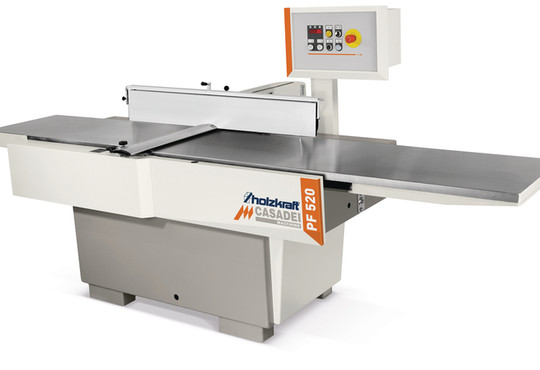

PF 520 M TERSA
Technische Daten:
- planing width: 520 mm
- planing shaft type: tersa
- number of blades: 4
- sourface table length: 3000 mm
- table adjustment: electrically
- read out table height: digital
- sourface fence adjustable: yes
- motor power: 7 kW
- suction connection: 120 mm
- machine length: 3005 mm
- machine width: 1460 mm
- weight: 870 kg
- Model year: 2022
- Location: at our showroom
Price:
12499,- € (net)
- Dressing tables made of gray cast iron
- The dressing table adjustment takes place via a precise parallelogram system, so that the distance between the table tips and - - the knife shaft remains the same in every adjustment position
- Large precision aluminium dressing fence, slightly tiltable 90 - 45 °
- The inclination of the stop is easily readable from the operator side
- As standard with auxiliary stop for safe planing of even narrow workpieces
- Large four-knife shaft, precision-mounted
- Quiet running with precision aggregate and heavy cast iron execution
- Powerful industrial motor with direct start
Additional equipment PF 520 M:
- extra long inlet table
- motorized adjustment of the dressing table
- Digital display for chip removal
Room amenities
- Control panel over table
- PF 520 M with motorized height adjustment of the infeed table and digital display of the chip removal
- The dressing tables made of a highly ribbed cast construction remain permanently flat and precise
- The planing tables are adjusted by a precise parallelogram system
- Thus, the distance of the table tips to the blade shaft remains the same in each adjustment position
Tersa planer knife
- No adjustment and more screws
- Planer blade change in seconds
- self-locking
- Especially low noise
- Perfect planing result
- The dressing table adjustment takes place via a precise parallelogram system, so that the distance between the table tips and - - the knife shaft remains the same in every adjustment position
- Large precision aluminium dressing fence, slightly tiltable 90 - 45 °
- The inclination of the stop is easily readable from the operator side
- As standard with auxiliary stop for safe planing of even narrow workpieces
- Large four-knife shaft, precision-mounted
- Quiet running with precision aggregate and heavy cast iron execution
- Powerful industrial motor with direct start
Additional equipment PF 520 M:
- extra long inlet table
- motorized adjustment of the dressing table
- Digital display for chip removal
Room amenities
- Control panel over table
- PF 520 M with motorized height adjustment of the infeed table and digital display of the chip removal
- The dressing tables made of a highly ribbed cast construction remain permanently flat and precise
- The planing tables are adjusted by a precise parallelogram system
- Thus, the distance of the table tips to the blade shaft remains the same in each adjustment position
Tersa planer knife
- No adjustment and more screws
- Planer blade change in seconds
- self-locking
- Especially low noise
- Perfect planing result
