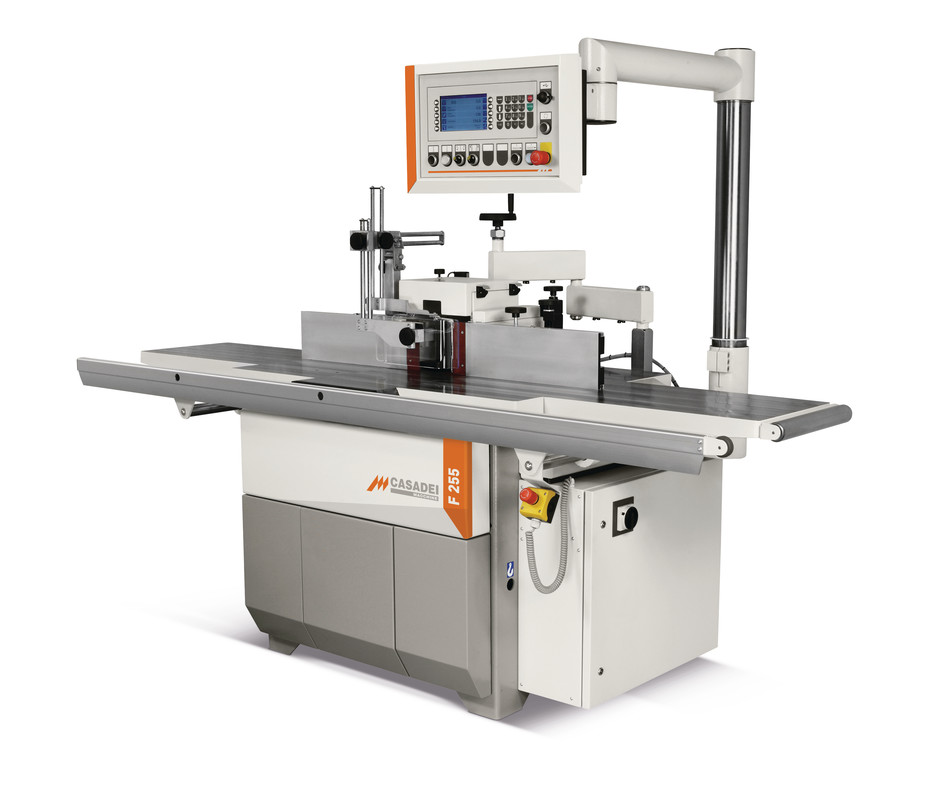

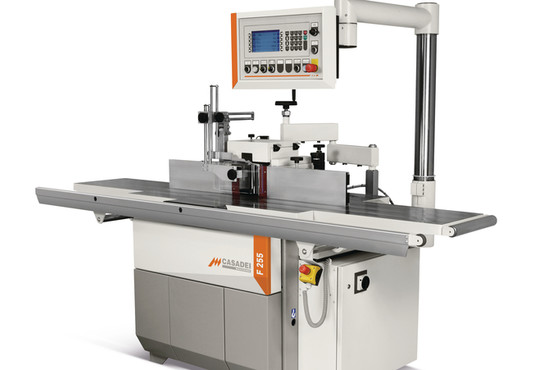

tilting spindle moulder
Casadei
Milling
Type:
F 255 A3 PL
Technische Daten:
- spindle tilting: + 45,5° bis -45,5°
- height adjustment: electrically
- tilting adjustment: electrically
- fence adjustment: electrically
- altitude display: digital
- swivel angel display: digital
- fence display: digital
- spindle: MK 5
- speeds: stepless 900 – 12000min¯¹
- power consuption: 7,5 kw
- motor brake: yes, automatically
- suction connection: 3 x 100 mm, 1 x 120 mm
- machine length: 2540 mm
- machine width: 1195 mm
- weight: 950 kg
- Model year: 2022
- Location: not available now
Price:
24999,- € (net)
Highly stable steel gray cast iron construction
Large work table made of gray cast iron
Electric spindle drive 7.5 kW with maintenance-free direct drive guarantees maximum precision through maximum smoothness
Maximum power is already available from 3400 min¹
Precision aggregates and high own weight
Rapid table insert, infinitely manually adjustable to tool diameter (optionally electronically positionable)
Standard with right-left rotation with electronic blocking when changing direction
Infinitely variable speed via inverter from 900 - 12000 min¯¹
Speed digital display on the front
Interchangeable spindle MK 5
Controls on the front
Milling stop with fine adjustment, linearly adjustable via handwheels from the front of the operator
Automatic star-delta start
Automatic engine brake
Connection for feed unit
Room amenities:
Pivoting NC control at eye level
The standard NC control controls all axes of the machine and the speed of the milling spindle, if the machine is equipped with an inverter.
Large 7 "screen, 16: 9 format All spindle controls are on one side and allow quick adjustment of the machine.
The software is easy to use. The storage capacity includes up to 300 programs, which can be transmitted with various parameters via a USB interface.
Swivel spindle
Exchange spindle MK 5 as standard
Spindle + 45.5 ° to -45.5 ° swiveling
The pivoting allows the use of small diameter tools and for special machining
Available options:
Option swivel mechanism milling stop
easily swing away from the work table
for shorter set-up times
Standard on F 255 A3
Option PL version
With table extension right and left and extendable workpiece support at the front
Material roll on the right
Total length 2540 mm
