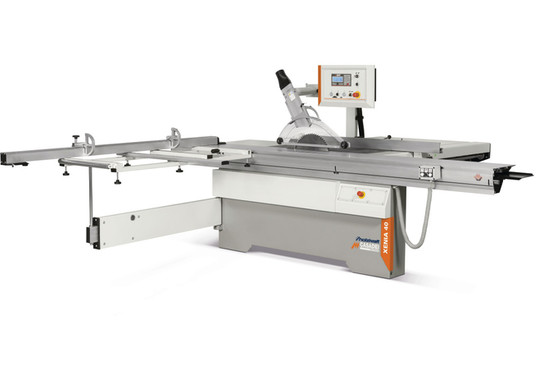

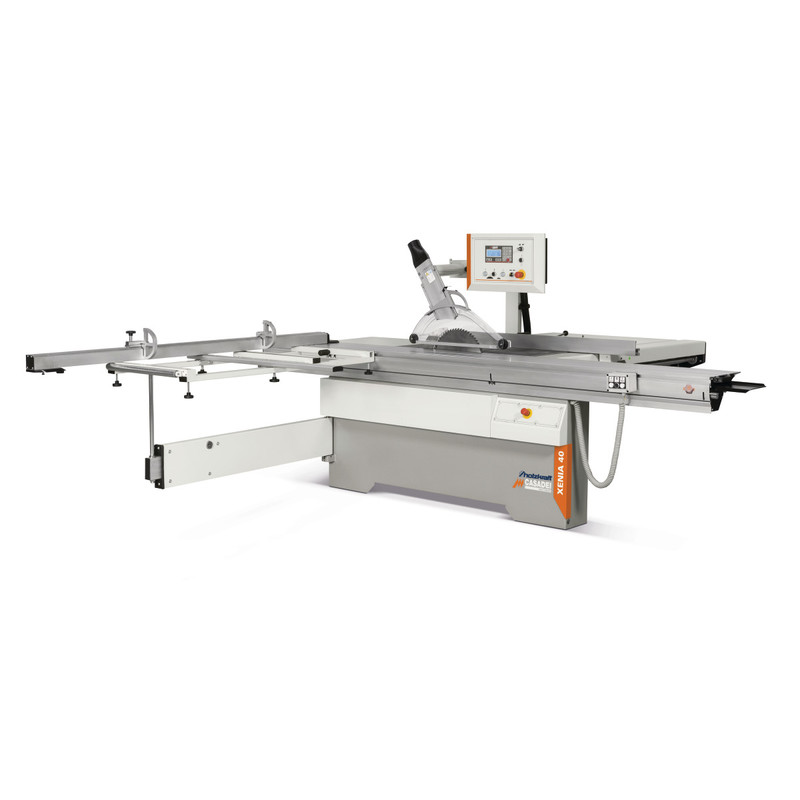

sliding table saw
Casadei
sliding table saws
Type:
XENIA 40 M A
Technische Daten:
- sliding carriage length: 3200 mm
- cutting width with rip fence: 1270 mm
- Max. cross cut width left from saw blade: 3200 mm
- Max. cutting height 90°: 140 mm
- Max. cutting height 45°: 99 mm
- scoring unit: yes
- height adjustment: motorized
- tilt adjustment: motorized
- rip fence adjustment: motorized

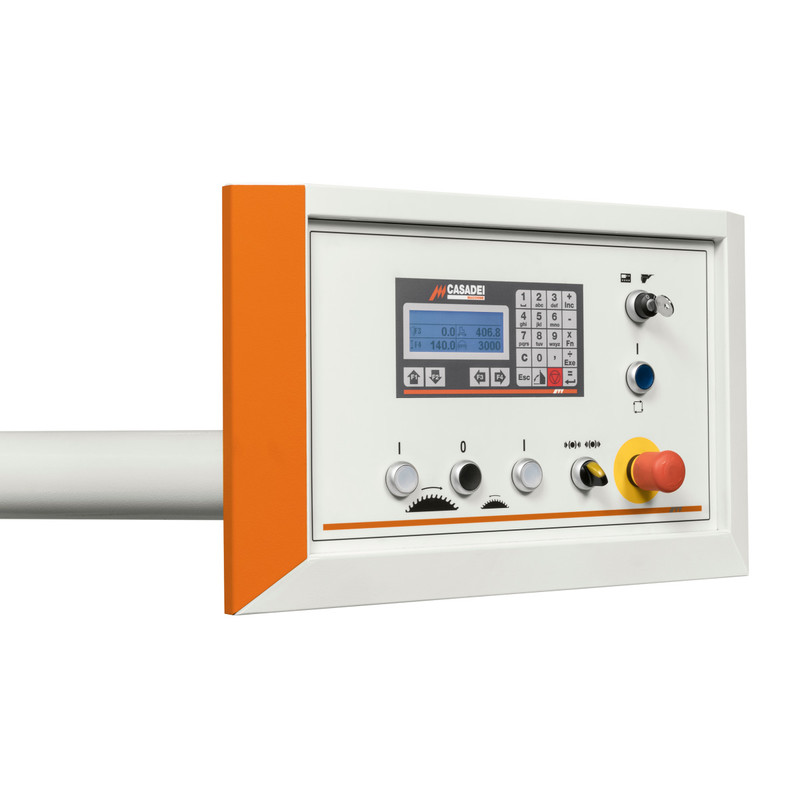

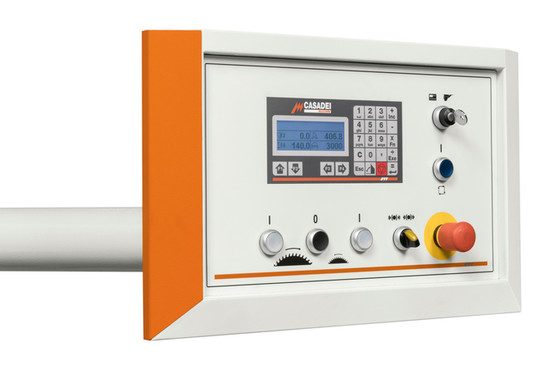

- display saw blade tilt: digital
- display saw blade height: digital
- display rip fence: digital
- display crosscut: scala
- saw blade diameter: 400 mm
- saw blade speed: 3000 - 4000 - 5000 U/min
- motor power: 7,0 kW
- motor brake: yes / automatically
- suction connection: 80 mm / 120 mm
- machine length: 3600 mm
- machine width: 1900 mm
- weight: 1600 kg
- Model year: 2023
- Location: at our showroom
Price:
15999,- € (net)
With swiveling 400 mm saw blade and preheating device. M version with motorized height and angle adjustment of the saw blade.
- Sturdy cast steel construction guarantees precision, smooth running and durability

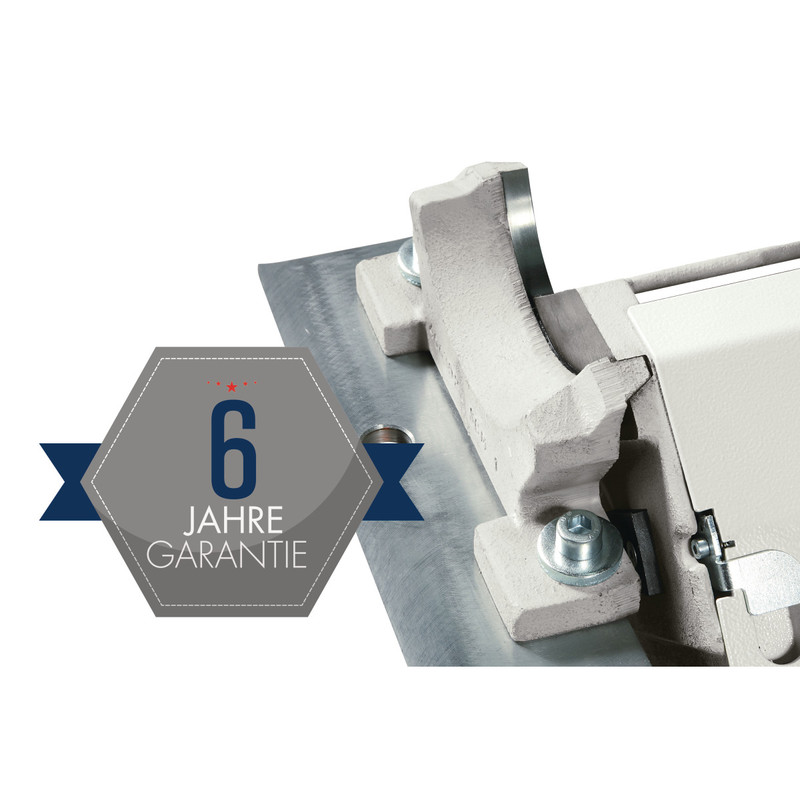

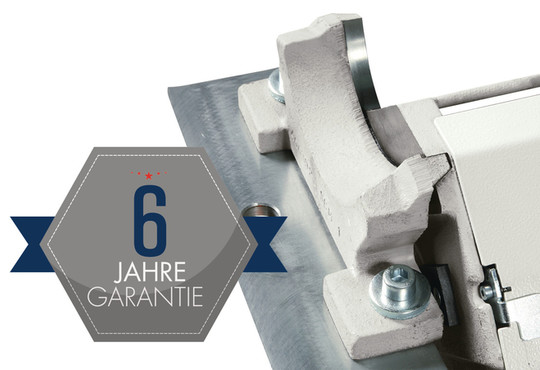

- Smooth-running and precise sliding table made of anodized aluminum with proven and permanently smooth-running ball contact system on hardened guides - 10-year warranty on wear of carbide guide ways
- Cast iron saw table
- Large support surfaces due to standard table extension and widening

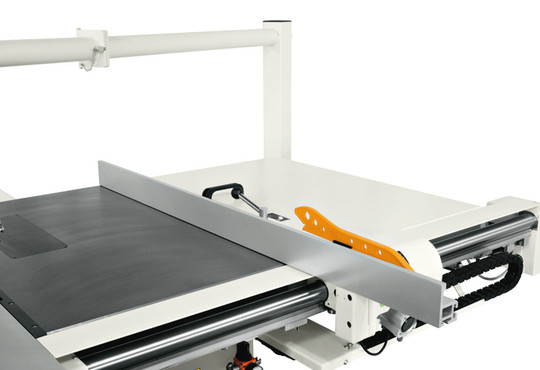

- Folding rip fence manually adjustable with fine adjustment
- Angle-adjustable crosscut fence, extendable up to 3200 mm, with two folding stops
- Extension arm with material roller
- Xenia 40 M A: Round steel guide with diameter Ø 50 mm
- Lateral swing-away saw blade guard with integrated exhaust port

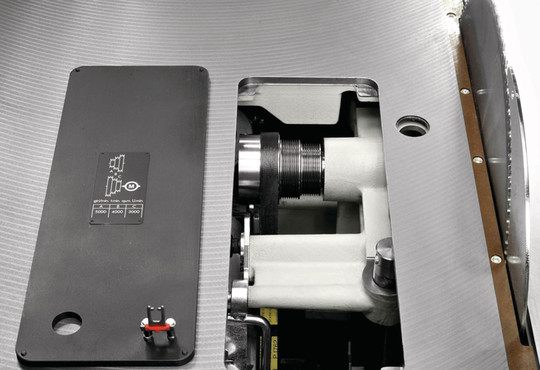

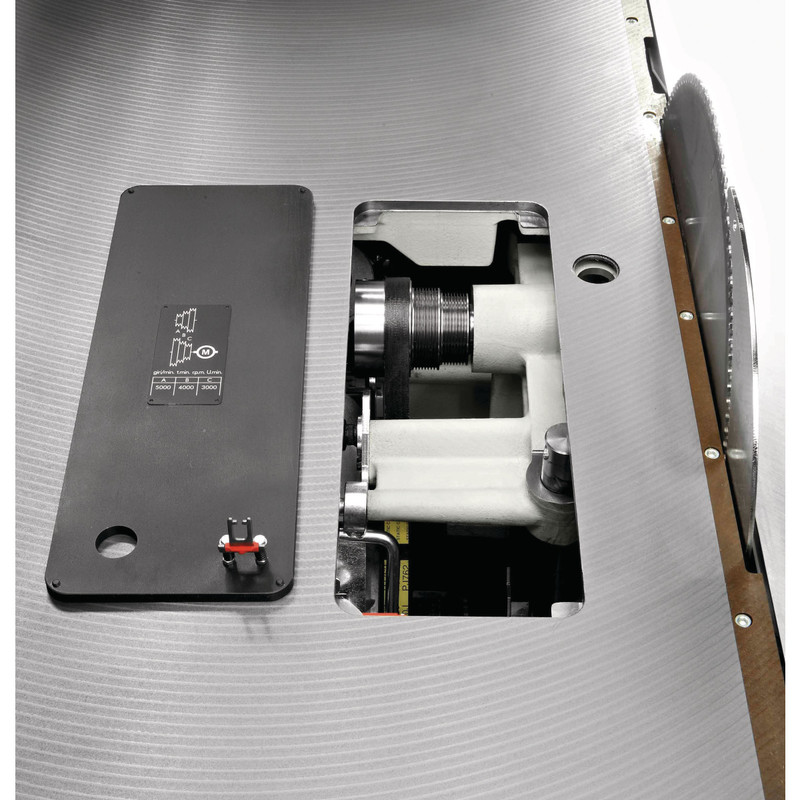

- M version with 3 saw blade speeds as standard

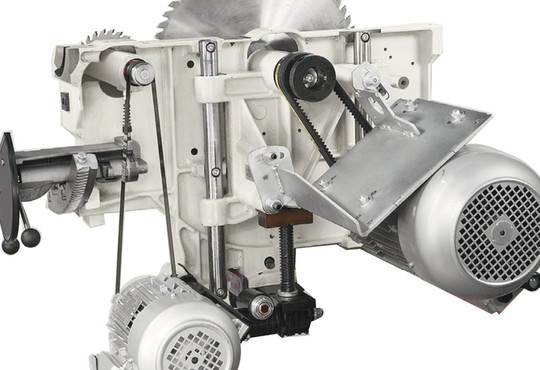

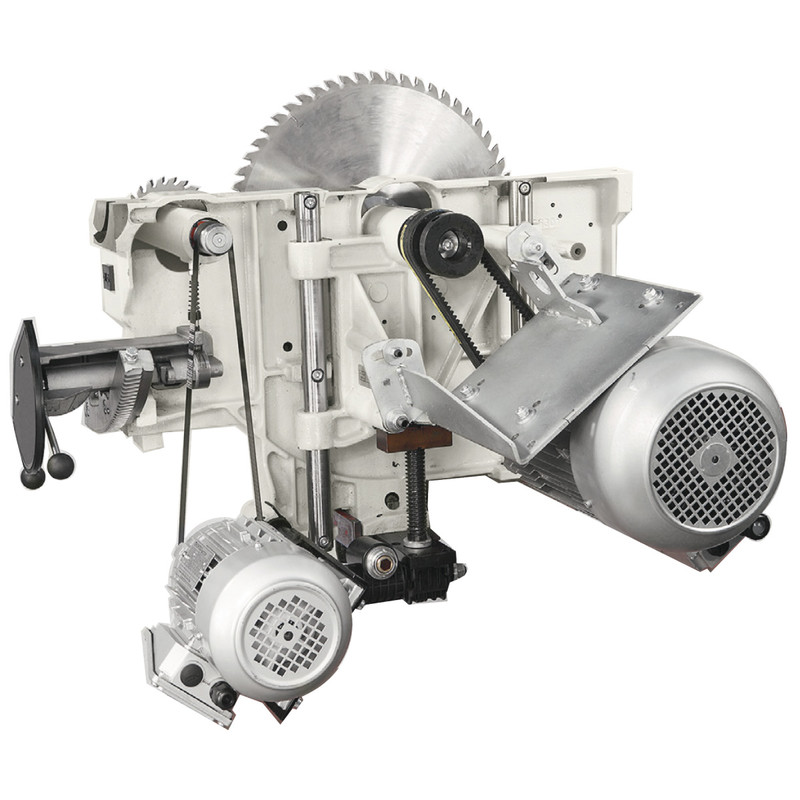

- Scoring unit with separate scoring motor
- XENIA 40: numerical display for saw blade tilting on the front of the machine
- Sturdy cast steel construction guarantees precision, smooth running and durability
- Smooth-running and precise sliding table made of anodized aluminum with proven and permanently smooth-running ball contact system on hardened guides - 10-year warranty on wear of carbide guide ways
- Cast iron saw table
- Large support surfaces due to standard table extension and widening
- Folding rip fence manually adjustable with fine adjustment
- Angle-adjustable crosscut fence, extendable up to 3200 mm, with two folding stops
- Extension arm with material roller
- Xenia 40 M A: Round steel guide with diameter Ø 50 mm
- Lateral swing-away saw blade guard with integrated exhaust port
- M version with 3 saw blade speeds as standard
- Scoring unit with separate scoring motor
- XENIA 40: numerical display for saw blade tilting on the front of the machine
