wide belt sanding machine

Casadei

Grinding

Type: LIBRA 35/2 RTC 110
Technische Daten:
  • working width:  1100 mm
  • min. workpiece height:  4 mm
  • max. workpiece height:  170 mm
  • height adjustment:  electrically
  • workpiece thickness display:  digital
  • aggregates:  2
  • 1. aggregat:  angular grooved steel roller Ø 120 mm, fine adjustment for calibration, pneumatic on/off of the roller

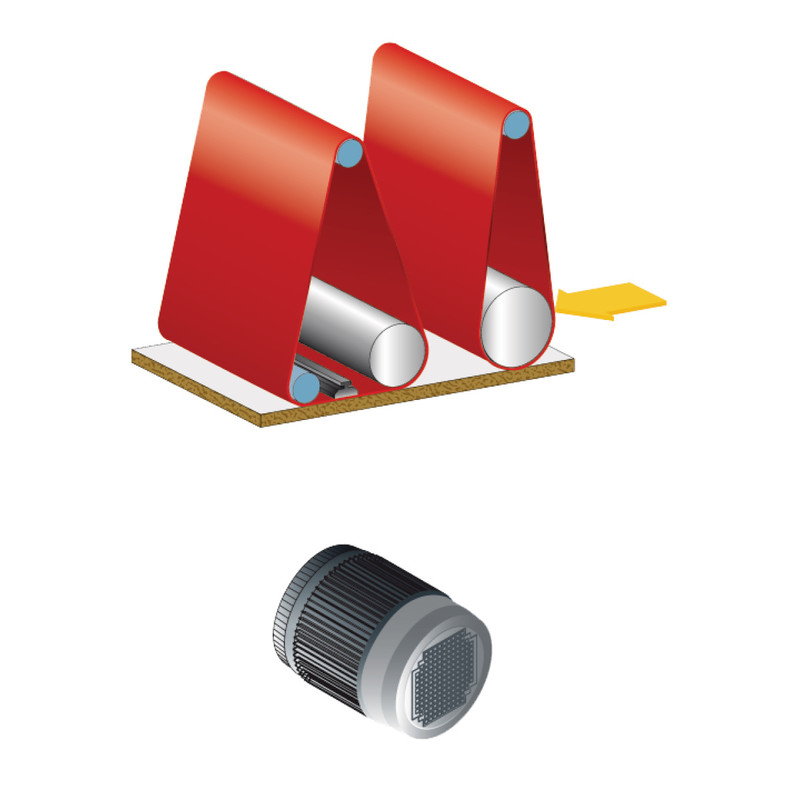

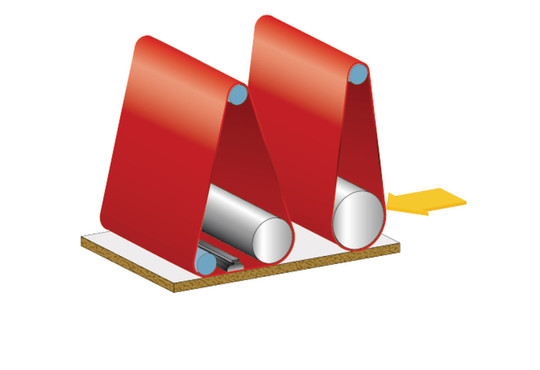

  • 2. Aggregat:  Combination unit with finely adjustable working height for calibrating and fine grinding: rubber-coated roller Ø 120 mm (45 Sh), hard grinding shoe with graphite coating on replaceable insert and pneumatic on/off of roller
  • Link grinding shoe:  elastic, sector distance 56

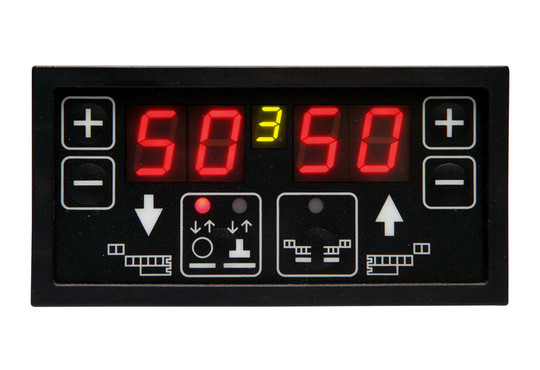

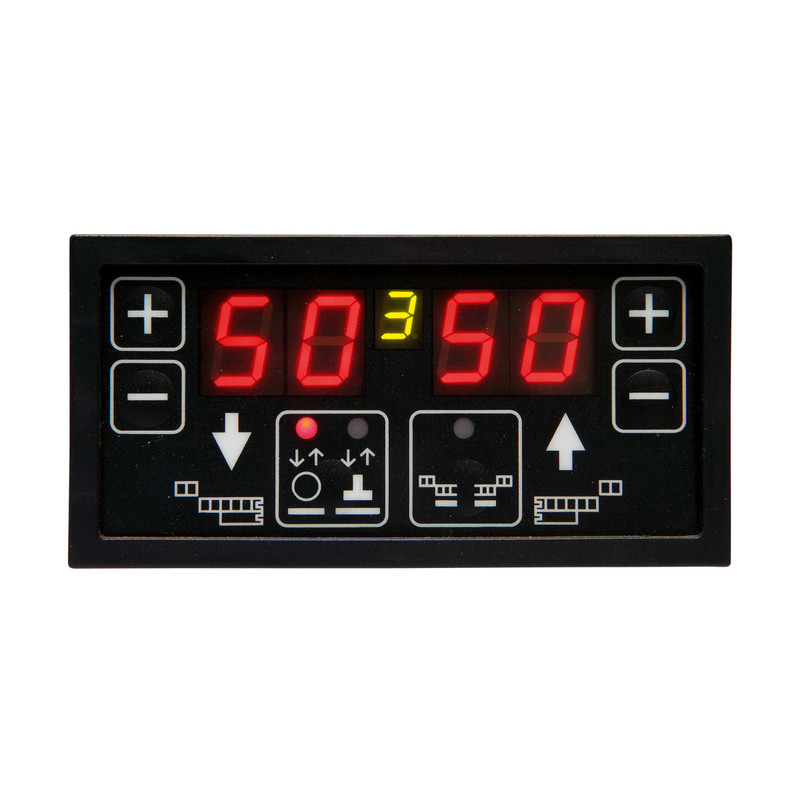

  • Electronic control:  FOX 500 KTR
  • dust brush:  no
  • motor power:  15 kW
  • suction connection:  2 x 140 mm
  • machine length:  1650 mm
  • machine width:  1820 mm
  • machine height:  1960 mm
  • weight:  1170 kg
  • Model year: 2022
  • Location: Bamberg
Price: 23599,- € (net)

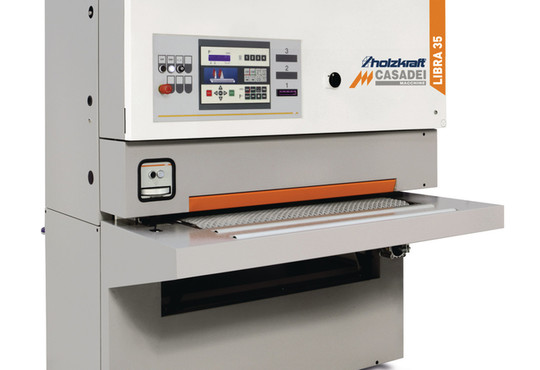

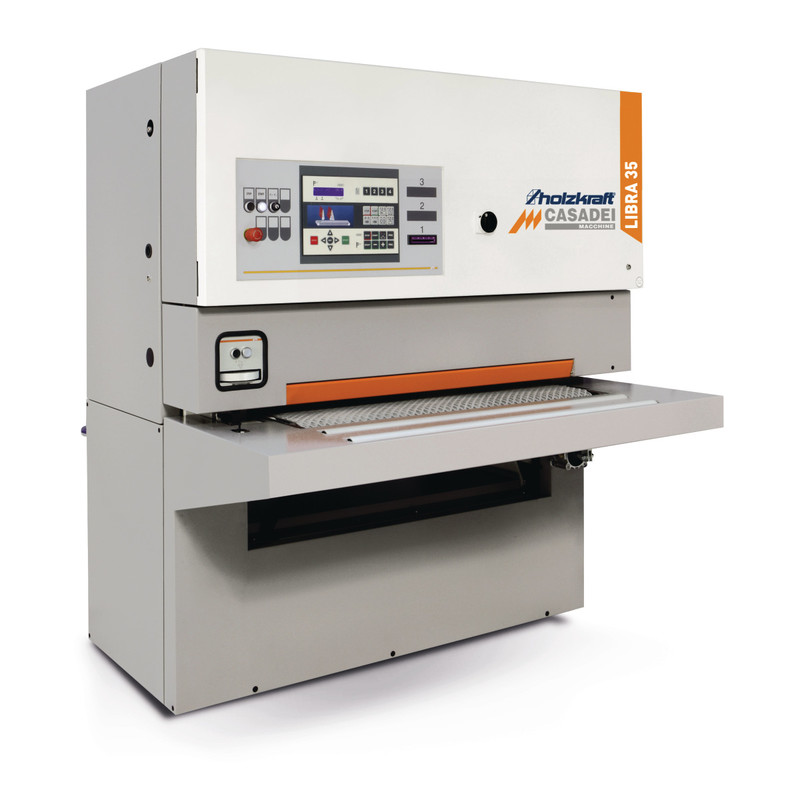

The LIBRA 35 calibration and fine grinding machine is an extremely versatile machine that can be used in different ways
Robust tube-stiffened monoblock steel machine body with working units mounted high up for maximum rigidity
User-friendly due to clear control panel on the front side
Motorized table height adjustment
Digital display for working height
Electronically controlled sanding belt oscillation with reduced compressed air requirement
Automatic star-delta start for main motor
Natural rubber feed carpet with negative profile
Support table with two rollers in the infeed and outfeed of the feed carpet
Carpet feed via gear motor with two speeds
Flexible steel pressure rail in front of the first unit
Rubber pressure rollers, in front and behind each working unit
Pneumatic belt tensioning for each unit with decimal correction possibility of the grain/ belt thickness
Quality - Made in Europe
